01 - Control Panel Parts
02 - Top Venting Parts
03 - Oven Parts
04 - Oven Door Parts

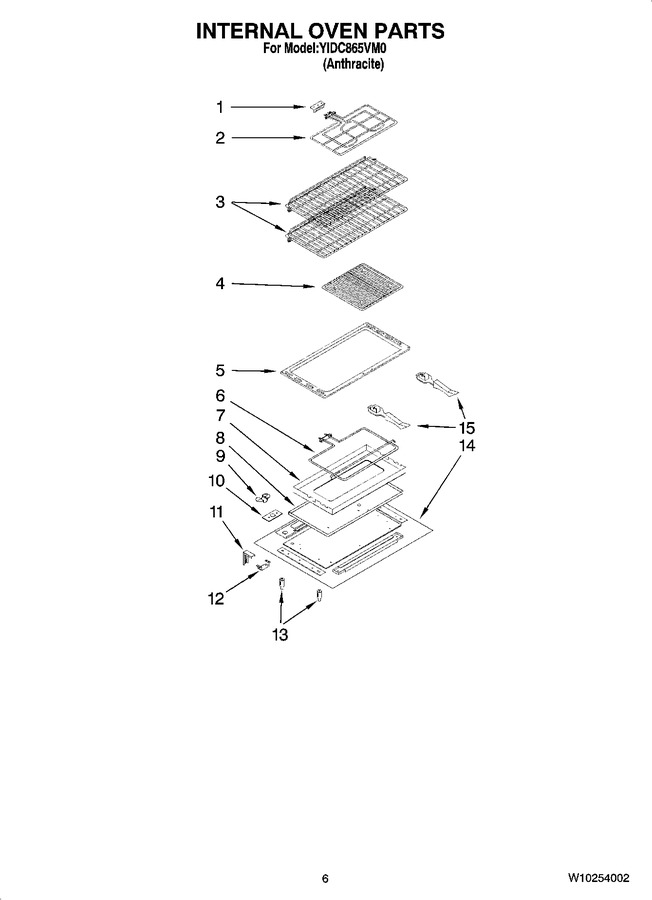

05 - Internal Oven Parts
06 - Cooktop Parts
07 - Burner Box And Manifold Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10202952 | Bracket, Element |
|
- | |||||
| 2 | W10204055 | Element, Broil |
|
$ 213.41 | |||||
| 3 | W10204402 | Rack, Oven |
|
- | |||||
| 4 | W10204407 | Rack, Oven |
|
- | |||||
| 5 | W10204409 | Tray, Drip |
|
- | |||||
| 6 | W10204054 | Element, Bake |
|
- | |||||
| 7 | W10250216 | Tray, Bake Element |
|
- | |||||
| 8 | W10250218 | Shield, Heat |
|
- | |||||
| 9 | W10250226 | Clamp, Wire |
|
- | |||||
| 10 | W10250248 | Bracket, Support |
|
- | |||||
| 11 | W10204306 | Bracket, Anti-tip |
|
- | |||||
| 12 | W10204305 | Bracket, Anti-tip |
|
- | |||||
| 13 | W10250206 | Foot (4) |
|
- | |||||
| 14 | W10250217 | Bottom, Main |
|
- | |||||
| 15 | W10250832 | Handle (tray, Drip) |
|
- | |||||
| 15 | W10250831 | Handle (pan, Little) |
|
- |
