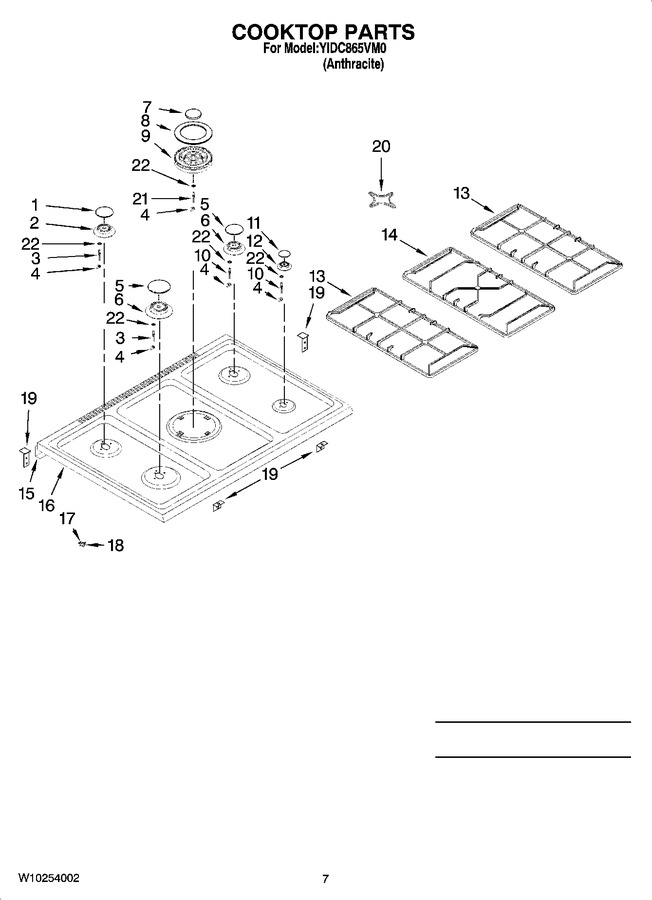

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204400 | Cap, Burner-rapid |
|
$ 69.96 | |||||
| 2 | W10204044 | Burner, Rapid |
|
$ 207.27 | |||||
| 3 | W10204073 | Igniter, Surface |
|
$ 142.82 | |||||
| 4 | W10250249 | Clip, Igniter |
|
- | |||||
| 5 | W10204401 | Cap, Brnr-semi Rap |
|
$ 31.67 | |||||
| 6 | W10204045 | Burner, Semi-rapid |
|
- | |||||
| 7 | W10205091 | Cap, Small Tcb |
|
- | |||||
| 8 | W10205090 | Cap, Large Tcb |
|
- | |||||
| 9 | W10204046 | Burner, Trple Crwn |
|
$ 156.47 | |||||
| 10 | W10204072 | Igniter, Surface |
|
- | |||||
| 11 | W10204399 | Cap, Burner-aux |
|
- | |||||
| 12 | W10204047 | Burner, Auxiliary |
|
- | |||||
| 13 | W10202963 | Grate, Burner (2) |
|
$ 175.13 | |||||
| 14 | W10202962 | Grate, Burner |
|
- | |||||
| 15 | W10250974 | Brace, Rear |
|
- | |||||
| 16 | W10245753 | Cooktop |
|
- | |||||
| 17 | W10204052 | Thermostat - 60c |
|
$ 142.85 | |||||
| 18 | W10250620 | Bracket, Thermstat |
|
- | |||||
| 19 | W10250319 | Support, Cooktop (left) |
|
- | |||||
| 19 | W10251104 | Support, Cooktop (rear (2)) |
|
- | |||||
| 19 | W10250321 | Support, Cooktop (right) |
|
- | |||||
| 20 | W10250822 | Grate, Coffee |
|
- | |||||
| 21 | W10250835 | Igniter, Surface |
|
- | |||||
| 22 | W10250892 | Gasket, Igniter |
|
- | |||||
| W10253505 | Orifice Ng 1.55 |
|
- | ||||||
| W10253504 | Orifice Ng 0.9 |
|
$ 28.78 | ||||||
| W10253503 | Orifice Ng 1.2 (2) |
|
- | ||||||
| W10253502 | Orifice Ng 1.5 |
|
$ 29.93 | ||||||
| W10252734 | Lp Kit |
|
- |
