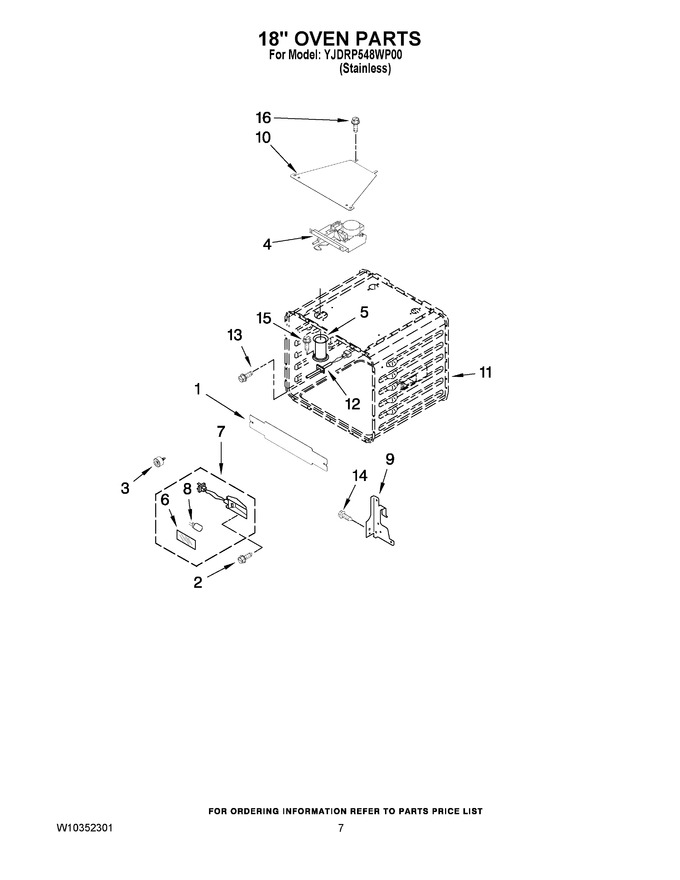

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10335955		Counterbalance, Door		Appelez-nous	-
2	4449748		Screw				$ 14.23
3	W10105790		Assembly, Bumper				$ 7.41
4	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 327.65
5	W10288078		Tube, Vent				$ 116.85
6	W10169756		Lens, Light				$ 42.19
7	WPW10307114		Oven Light Assy   (Replaces: W10307114)			Immediately	$ 116.01
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
9	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
10	W10160858		Cover, Latch				$ 76.94
11	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
12	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
13	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
16	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
NI	W11688744		Insulation, Wrap, 18``   (Replaces: W10282820)		Appelez-nous	-
NI	W10282812		Insulation, Back, 18``		Appelez-nous	-
