Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10145767 Kickplate   (Replaces: W10145767) Special Order $ 373.25

2 W10324080 Back, Chassis Appelez-nous -
3 WPW10138054 Roller, Assembly   (Replaces: W10138054) Special Order $ 45.34

4 W10145378 Duct, Bottom Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

6 W10859931 Foot   (Replaces: 9760860) Special Order $ 119.11

7 W10249333 Base, Leveling Leg Special Order $ 292.22

8 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

9 W10250466 Panel, Side (right) Special Order $ 513.24

9 W11321067 Panel, Side (left)   (Replaces: W10250467) Special Order $ 439.37

10 W10115869 Shaft, Long In-Stock Immediately $ 109.36

11 W10115793 Shaft, Short Special Order $ 75.83

12 489504 E-ring Special Order $ 7.40

13 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55

14 W10145375 Support, Channel Appelez-nous -
15 W11675844 Gasket, Front Frame (30``)   (Replaces: W10160890) In-Stock Immediately $ 74.56

15 W10116039 Gasket, Front Frame (18``) Appelez-nous -
16 W10160895 Frame, Front Appelez-nous -
17 W10115819 Column, Central Appelez-nous -
18 W10216520 Retainer, Ss Gasket (18``) Appelez-nous -
18 W11368870 Retainer, Ss Gasket (30``)   (Replaces: W10157511) Special Order $ 24.91

19 W10267895 Chassis, Top Appelez-nous -
20 W10235535 Chassis, Bottom Appelez-nous -
21 W10269209 Panel, Back Top Appelez-nous -
22 W10145390 Panel, Back Bottom Appelez-nous -
26 W10235557 Drawer Appelez-nous -
27 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

28 W10249337 Support Appelez-nous -
29 W10239444 Seal Appelez-nous -
30 W10876298 Control   (Replaces: W10146048) In-Stock Immediately $ 505.11

31 WP9759117 Foot   (Replaces: 9759117) Special Order $ 148.66

32 WP9759118 Plate, Mounting Foot   (Replaces: 9759118) Special Order $ 154.94

33 3400518 Screw Special Order $ 13.63

34 W10269191 Tube, Pressure Special Order $ 217.69

35 W10293267 Regulator, Pressure Special Order $ 313.91

36 W10115850 Bracket, Pressure Regulator Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

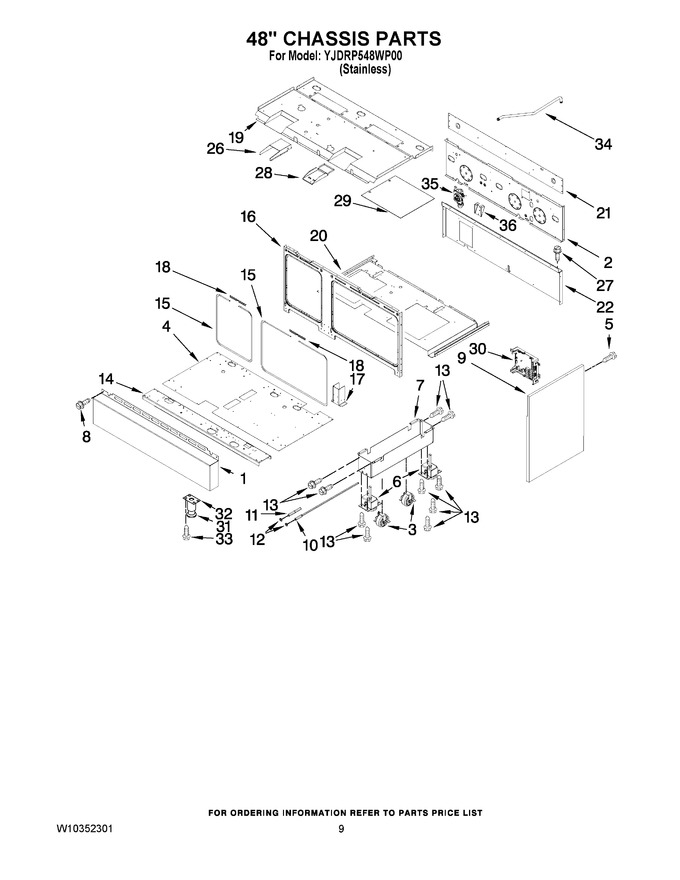

Diagram for YJDRP548WP00
