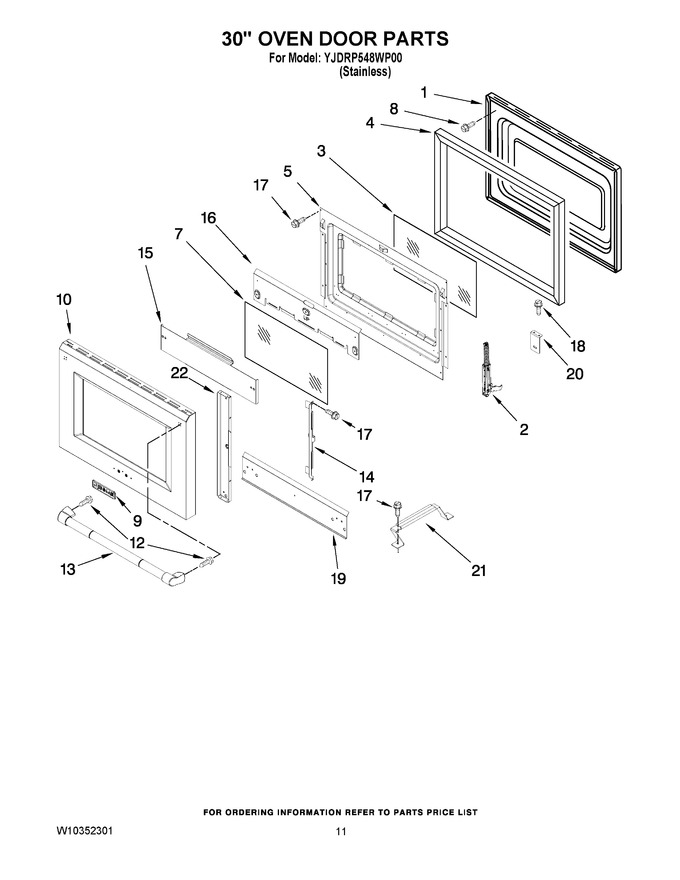

07 - 30`` Oven Door Parts


08 - 18`` Oven Door Parts


09 - 30`` Internal Oven Parts


10 - 18`` Internal Oven Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Interior Door   (Replaces: W10226001)				$ 370.46
2	W10782122		Hinge, Door (right)   (Replaces: W10269201)				$ 64.68
2	W10782123		Hinge Door (left)   (Replaces: W10269202)			Immediately	$ 64.68
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	W10226002		Retainer, Glass		Appelez-nous	-
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 88.54
10	W10322618		Panel, Exterior (includes Glass)				$ 282.68
12	WPW10276043		Screw, Handle   (Replaces: W10276043)				$ 7.30
13	WP7701P475-60		Door Handle   (Replaces: 7701P475-60)				$ 293.93
14	WP9759229		Bracket, Side 2nd Glass   (Replaces: 9759229)				$ 187.50
15	W10145763		Bracket, Center Outer Glass		Appelez-nous	-
16	4457104		Shield, Heat Top				$ 39.22
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
19	4457114		Shield, Heat Bottom				$ 217.79
20	W10115715		Bracket, Door Top		Appelez-nous	-
21	9759230		Bracket(3rd Glass)				$ 36.30
22	W10145761		Bracket, Side Outer Glass		Appelez-nous	-
