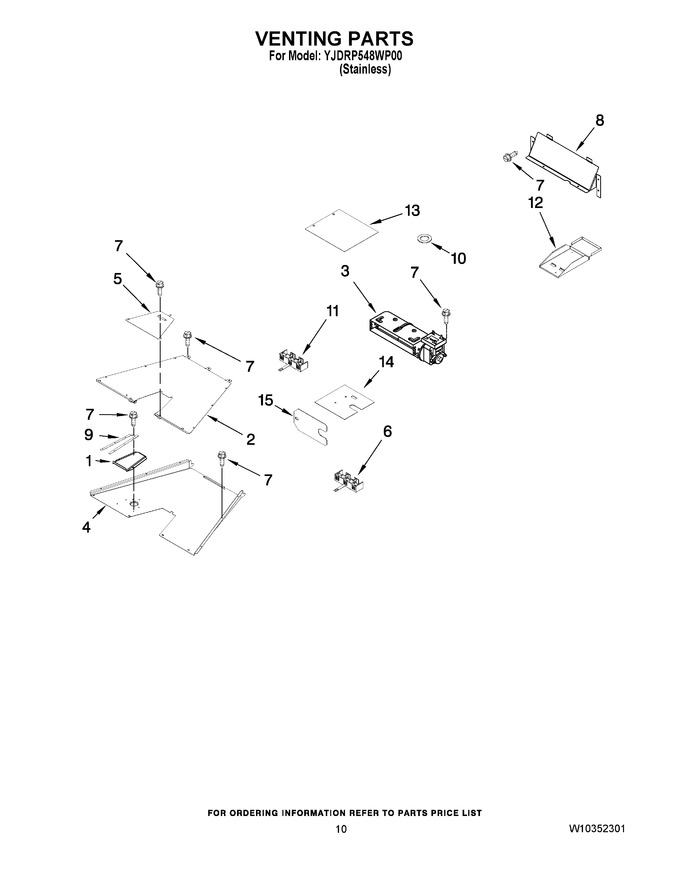

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10246075 | Slope, Exhaust Vent (30``) |
|
- | |||||
| 1 | W10226008 | Slope, Exhaust Vent (18``) |
|
- | |||||
| 2 | W10160896 | Vent, Cooling Top (30``) |
|
- | |||||
| 2 | W10160897 | Vent, Cooling Top (18``) |
|
- | |||||
| 3 | WPW10245511 | Blower (Replaces: W10245511) |
|
Immediately | $ 306.02 | ||||
| 4 | W10273653 | Vent, Cooling Bottom (18``) |
|
- | |||||
| 4 | W10246078 | Vent, Cooling Bottom (30``) |
|
- | |||||
| 5 | W10160875 | Plate, Cooling Latch |
|
- | |||||
| 6 | W10115858 | Box, Terminal |
|
$ 122.00 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | W10160844 | Bracket, Blower (18``) |
|
- | |||||
| 9 | W10270402 | Seal, Vent Slope (18``) |
|
- | |||||
| 9 | W10270397 | Seal, Vent Slope (30``) |
|
- | |||||
| 10 | W10270396 | Seal, Chimney |
|
- | |||||
| 11 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 12 | W10249337 | Support, Control |
|
- | |||||
| 13 | W10239444 | Seal, Control |
|
- | |||||
| 14 | 9759721 | Insulator, Terminal Box |
|
- | |||||
| 15 | W10145382 | Cover, Channel |
|
- |
