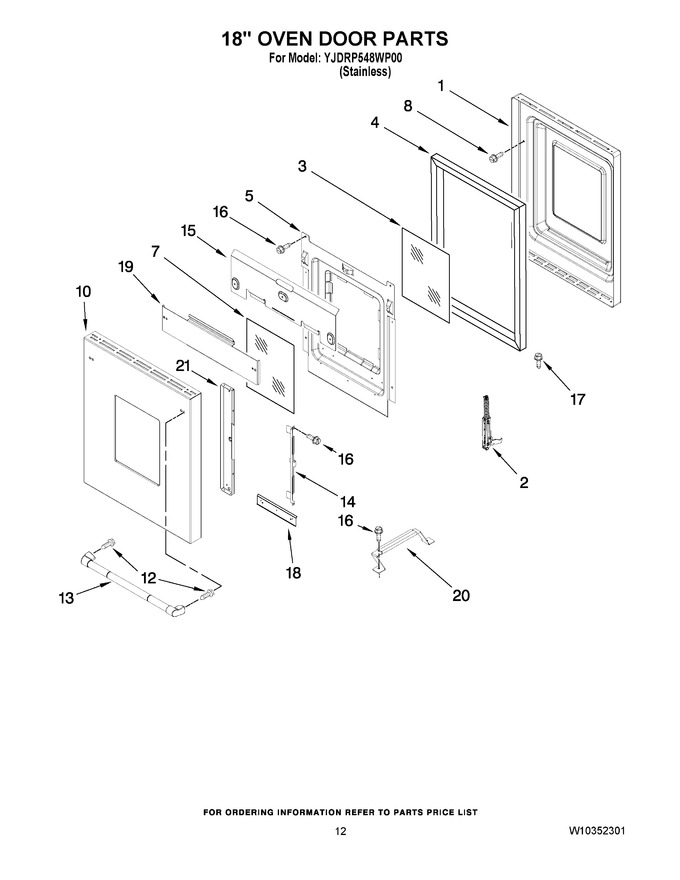

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188323		Panel, Interior Door		Appelez-nous	-
2	W10145814		Hinge, Door (left)		Appelez-nous	-
2	W10145813		Hinge, Door (right)		Appelez-nous	-
3	W10115693		Glass, Door Inner		Appelez-nous	-
4	W10115737		Insulation, Door		Appelez-nous	-
5	W10188325		Retainer, Glass		Appelez-nous	-
7	WPW10115695		Glass, Door Inner   (Replaces: W10115695)				$ 181.10
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
10	W10322615		Panel, Exterior (includes Glass)				$ 276.58
12	WPW10276043		Screw, Handle   (Replaces: W10276043)				$ 7.30
13	W10145768		Door Handle		Appelez-nous	-
14	WP9759229		Bracket, Side 2nd Glass   (Replaces: 9759229)				$ 187.50
15	W10115700		Shield, Top Heat		Appelez-nous	-
16	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
18	W10115708		Shield, Lower Heat		Appelez-nous	-
19	W10145762		Bracket, Center Outer Glass		Appelez-nous	-
20	9759230		Bracket, Central 3rd Glass				$ 36.30
21	W10145761		Bracket, Side Outer Glass		Appelez-nous	-
