01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)

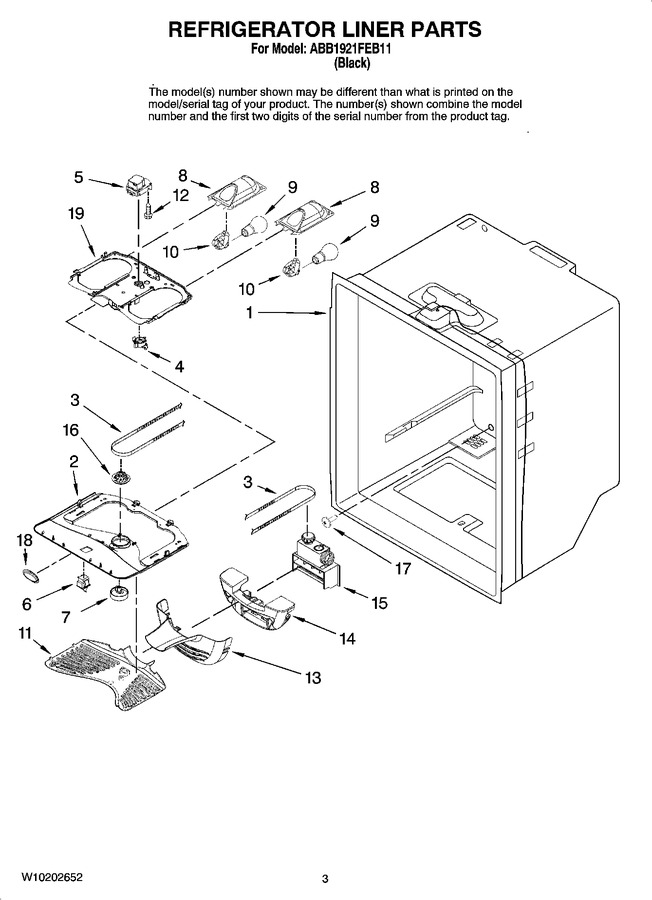

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	67002083		Bracket, Control And Lights		Appelez-nous	-
3	67001040		Belt, Damper				$ 35.28
4	67001034		Tensioner, Belt				$ 9.72
5	WP67001036		Timer, Defrost   (Replaces: 67001036)			Immediately	$ 150.57
6	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 39.09
7	67002512		Knob, Front				$ 35.96
8	W11702858		Housing, Light   (Replaces: 67001035)				$ 90.11
9	W11679940		Bulb, Light (2)   (Replaces: 67003568)			Immediately	$ 11.30
10	W11447232		Socket, Light (2)   (Replaces: Y12570701)			Immediately	$ 13.87
11	67002301		Cover, Light		Appelez-nous	-
12	12990514		Screw (2)		Appelez-nous	-
13	67002000		Cover, Damper				$ 25.46
14	67003803		Insulation		Appelez-nous	-
15	67003410		Gear, Damper Assembly				$ 107.16
16	67001033		Knob				$ 18.96
17	M0310343		Plug, Button				$ 11.20
18	67003104		Logo		Appelez-nous	-
19	67003108		Pan, Timer Light Housing				$ 53.26
NI	67001043		Harness, Controls (refrigerator) (includes 16)		Appelez-nous	-
