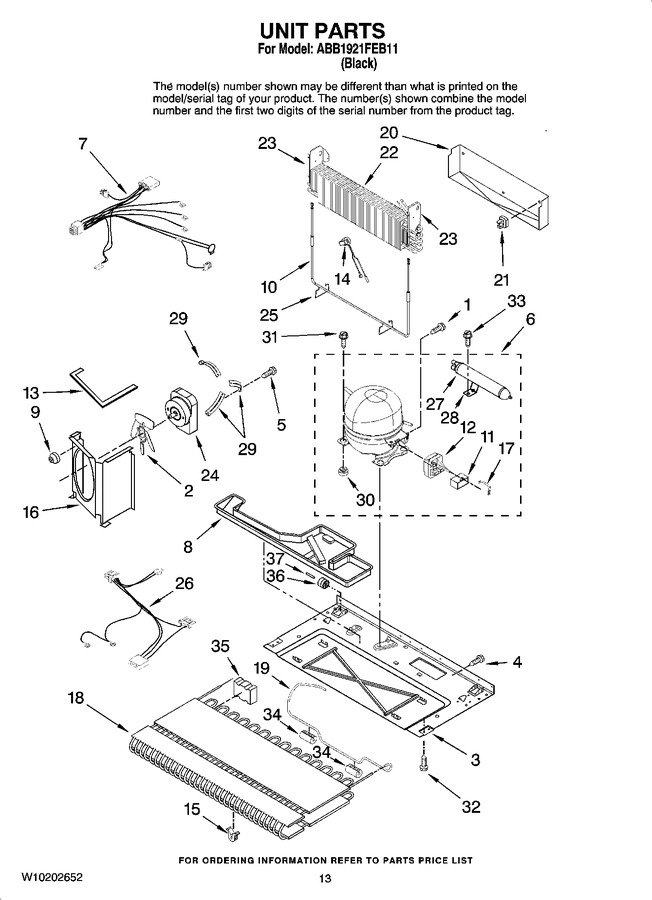

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw (3)   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67006914		Basepan		Appelez-nous	-
4	67006425		Screw (2)			Immediately	$ 7.30
5	WP67004954		Screw (3)   (Replaces: 67004954)				$ 8.18
6	W10130129		Compressor		Appelez-nous	-
7	W10119855		Harness, Evap. Heater		Appelez-nous	-
8	67004713		Drain Pan		Appelez-nous	-
9	61004743		Grommet (3)				$ 5.51
10	WP67002135		Evaporator Heater   (Replaces: 67002135)			Immediately	$ 160.16
11	W10613606		Capacitor   (Replaces: 67005562)			Immediately	$ 86.59
12	8201769		Overload/relay (capacitor Incl.)   (Replaces: W10174592)				$ 193.01
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.94
14	WP67003426		Thermostat   (Replaces: 67003426)			Immediately	$ 68.65
15	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.76
16	W10158508		Shroud, Condenser		Appelez-nous	-
17	W10131991		Clip, Capacitor		Appelez-nous	-
18	67006133		Condenser				$ 176.36
19	W10174591		Tube, Discharge		Appelez-nous	-
20	W11337775		Tray, Drip   (Replaces: 67001133)			Immediately	$ 99.07
21	10623002		Clip, Evaporator				$ 12.11
22	12002051		Evaporator				$ 323.54
23	67001084		Dam (right Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	13060302		Harness, Unit (includes Cord)   (Replaces: 13060301)				$ 324.94
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Fan   (Replaces: 67004953)				$ 72.27
30	WPW10169124		Grommet (3)   (Replaces: W10169124)				$ 7.55
31	12846902		Screw (2)   (Replaces: 67006432)				$ 13.64
32	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
33	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
34	67005680		Grommet (2)				$ 22.10
35	67005491		Block, Condenser		Appelez-nous	-
36	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 23.12
37	67006434		Axle, Roller (2)			Immediately	$ 7.90
23A	67001083		Dam (left Side)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
