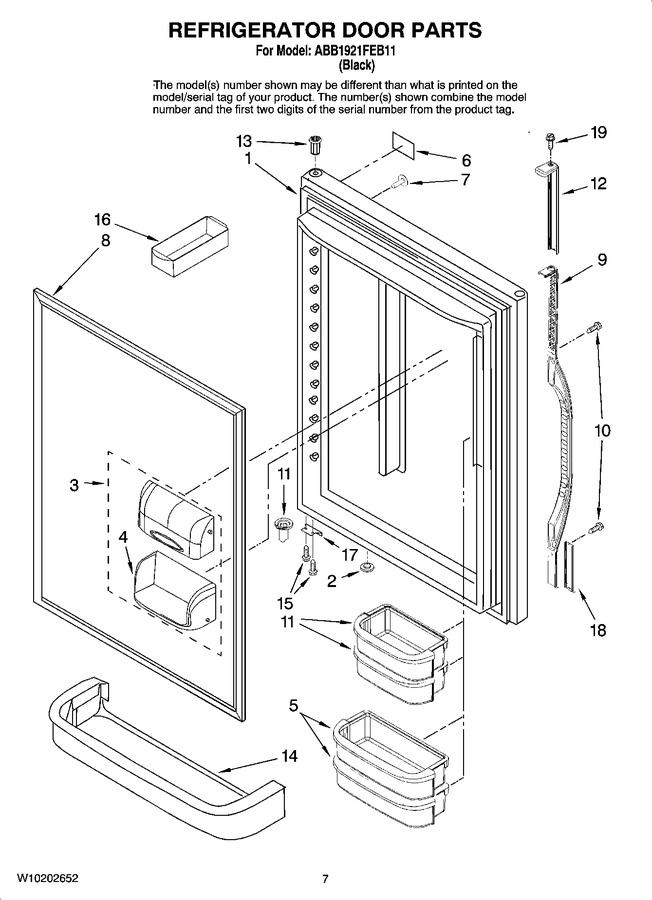

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658501BQ		Refrigerator Door (w/ Insulation) (black)   (Replaces: 67001136)				$ 703.63
2	67004838		Plug, Vent (black)				$ 11.21
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WP67001021		Bucket (2) (medium)   (Replaces: 67001021)				$ 84.95
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 62.74
7	WP12246608		Plug, Button (2) (black)   (Replaces: 67001131)			Immediately	$ 8.15
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: 12683815B)				$ 362.36
9	67003130		Handle, Door (black)		Appelez-nous	-
10	67006682		Screw		Appelez-nous	-
11	67001141		Bucket (2) Small			Immediately	$ 78.91
12	67005132		Trim, Handle		Appelez-nous	-
13	67004978		Bushing (black)				$ 22.10
14	67001139		Retainer, Door   (Replaces: 67001296)			Immediately	$ 104.79
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	10423131		Bin, Utility				$ 31.13
17	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
18	67005138		Trim, Handle Bottom		Appelez-nous	-
19	12248201		Screw				$ 5.48
