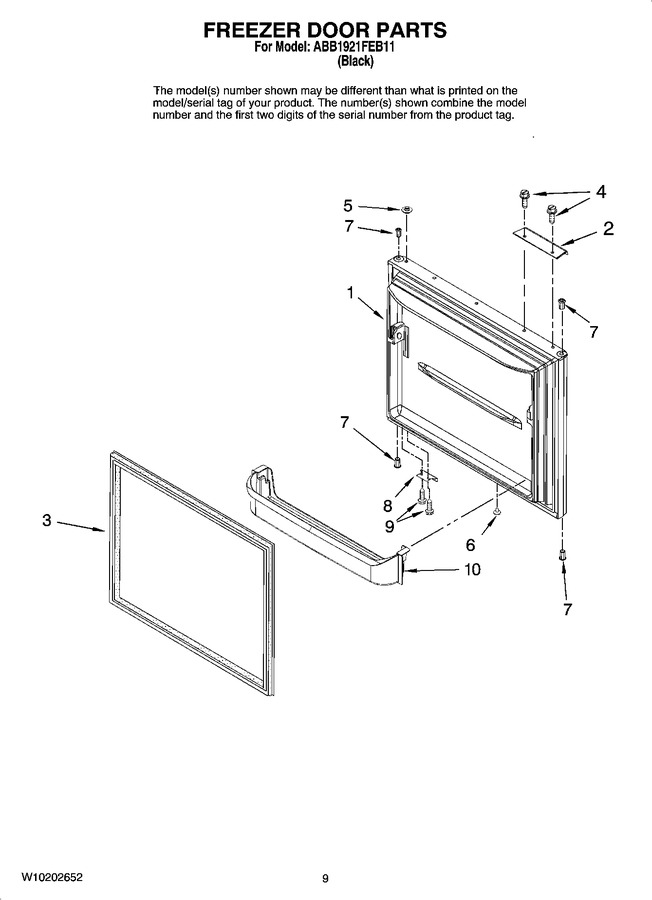

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176976 | Freezer Door (w/ Insulation) (black) |
|
- | |||||
| 2 | 67005125 | Handle, Door (black) |
|
$ 142.03 | |||||
| 3 | WPW10436247 | Gasket, Door (black) (Replaces: W10153328) |
|
Immediately | $ 355.53 | ||||
| 4 | WPW10348409 | Screw (Replaces: 67006831) |
|
Immediately | $ 7.76 | ||||
| 5 | WP12246608 | Plug, Hole Black (Replaces: 12246603) |
|
Immediately | $ 7.76 | ||||
| 6 | 67004838 | Plug, Vent (2) (black) |
|
$ 10.68 | |||||
| 7 | 67004978 | Bushing (4) |
|
$ 21.05 | |||||
| 8 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 9 | WP98165 | Screw (2) (Replaces: 67006287) |
|
$ 8.00 | |||||
| 10 | 67003397 | Retainer, Freezer Door |
|
$ 104.39 |
