Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001302 Ladder, Side Appelez-nous -
2 67006425 Screw (6)   (Replaces: 67006400) In-Stock Immediately $ 6.95

3 67001073 Ladder, Center Special Order $ 54.18

4 W10709795 Screw (2)   (Replaces: 67006360) Special Order $ 13.13

6 67003400 Frame, Shelf (2) Special Order $ 33.00

7 WP67006877 Glass, Crisper   (Replaces: 67006877) In-Stock Immediately $ 209.75

8 WPW10671240 Frame, Crisper   (Replaces: 67001153) In-Stock Immediately $ 138.10

9 WP67001308 Pan, Deli   (Replaces: 67001308) In-Stock Immediately $ 138.10

10 WP67005864 Slide, Humidity   (Replaces: 67005864) In-Stock Immediately $ 7.81

11 WP841180A Tray, Ice Cube   (Replaces: D7725402) In-Stock Immediately $ 45.56

13 WP12227302WD Brace, Crisper Frame   (Replaces: 67001155) Special Order $ 106.29

14 67003884 Trim, Crisper Appelez-nous -
15 W10833528 Pan, Crisper (2)   (Replaces: 67002569) In-Stock Immediately $ 139.95

16 67001164 Shelf, Freezer Special Order $ 67.44

17 12646501 Rack, Ice Appelez-nous -
20 WP12754803 Basket, Freezer (lower)   (Replaces: W10143565) Special Order $ 254.30

21 WP67001053 Glide-deli (right)   (Replaces: 67001053) In-Stock Immediately $ 9.24

22 WPW10671238 Rail, Ctr Crisper   (Replaces: 67001057) In-Stock Immediately $ 112.82

24 10972101 Spacer, Rack Special Order $ 7.82

26 WP67006908 Screw (2)   (Replaces: 67006908) In-Stock Immediately $ 7.95

27 W11233072 Screw (4)   (Replaces: 67006626) In-Stock Immediately $ 14.02

28 WP10946013 Trim, Rear Full Shelf   (Replaces: 10946013) Special Order $ 125.56

29 W10840992 Frame, Full Shelf   (Replaces: 10460115) Special Order $ 215.60

30 WP12204809 Glass, Full Shelf   (Replaces: 12204809) Special Order $ 239.26

31 10459931 Trim, Full Shelf, Front Appelez-nous -
32 67004612 Trim, Rear Deli Shelf Appelez-nous -
33 12204808 Glass, Deli Shelf (2) Special Order $ 27.75

34 10459930 Trim, Front Deli, Shelf Special Order $ 42.17

21A WP67001054 Glide-deli (left)   (Replaces: 67001054) In-Stock Immediately $ 8.40


    View Diagram in Separate Window     Print Icon   Print Part List

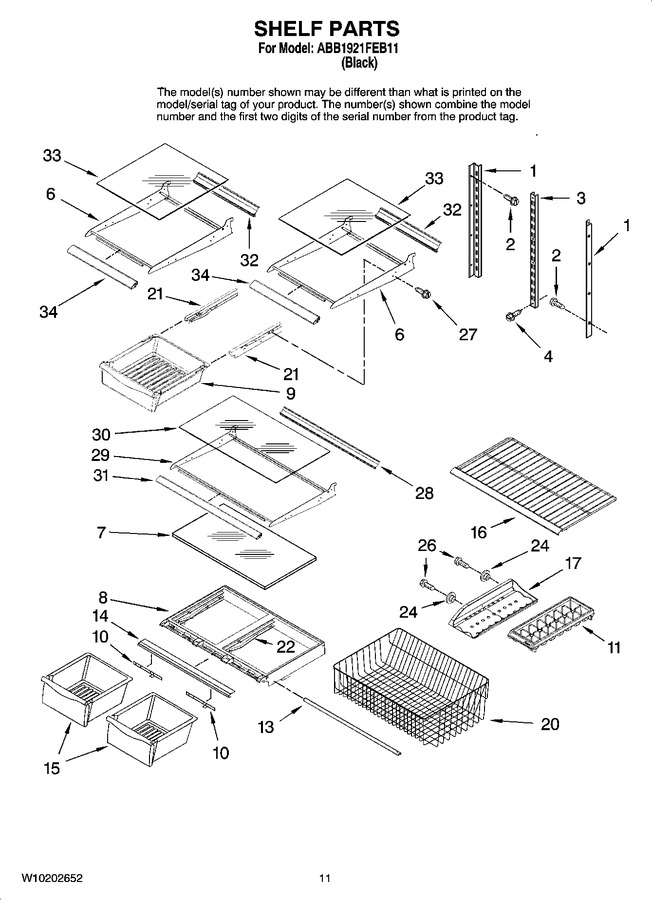

Diagram for ABB1921FEB11
