SELECT A DIAGRAM

1 - Upper Oven


2 - Power Control


3 - Upper Control Panel


4 - Upper Basic Body


5 - Upper Oven Door Parts


6 - Gas Control Assembly


7 - Oven Door


8 - Cooktop

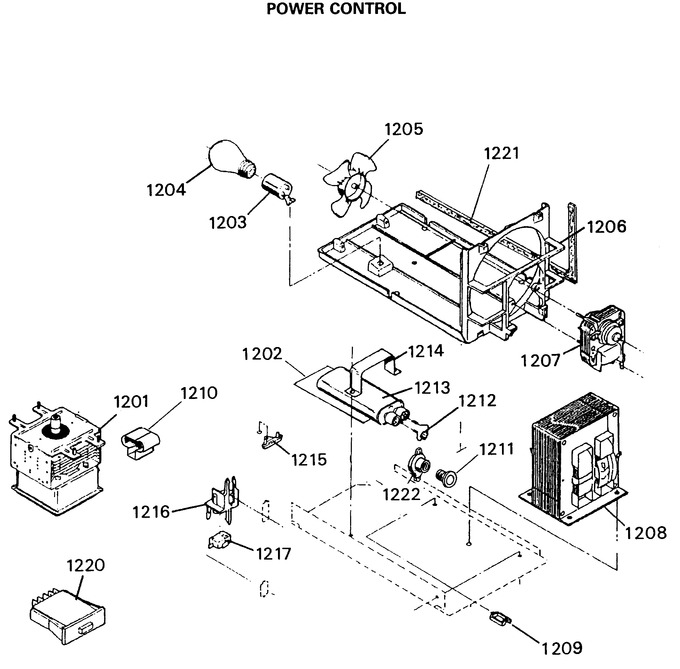

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1201	WB27X5478		Magnetron		Appelez-nous	-
1202	WB2X7982		Insulator-capacity		Appelez-nous	-
1203	WB8X5103		Socket-light		Appelez-nous	-
1204	BUY LOCAL		Bulb-oven Light-40 Watt		Appelez-nous	-
1205	WB2X7983		Fan-blade		Appelez-nous	-
1206	WB49X5479		Duct-air-fan		Appelez-nous	-
1207	WB26X5091		Motor-fan		Appelez-nous	-
1208	WB27X5484		Transformer		Appelez-nous	-
1209	WB2X7984		Fastener-wire Clip		Appelez-nous	-
1210	WB2X7985		Insulator		Appelez-nous	-
1211	WB27X303		Fuse-20 Amp		Appelez-nous	-
1212	WB27X5479		Diode-high V		Appelez-nous	-
1213	WB27X321		Capacitor-high V		Appelez-nous	-
1214	WB2X7986		Retainer-capacitor		Appelez-nous	-
1215	WB27X5480		Fuse-thermal		Appelez-nous	-
1216	WB2X8263		Bracket-upper/lower		Appelez-nous	-
1217	WB24X5269		Switch Upper & Lower		Appelez-nous	-
1220	WB24X5270		Switch-monitor-white		Appelez-nous	-
1221	WB2X7988		Seal Foam		Appelez-nous	-
1222	WB8X246		Socket-fuse		Appelez-nous	-
