SELECT A DIAGRAM
1 - Upper Oven
2 - Power Control
3 - Upper Control Panel
4 - Upper Basic Body
5 - Upper Oven Door Parts

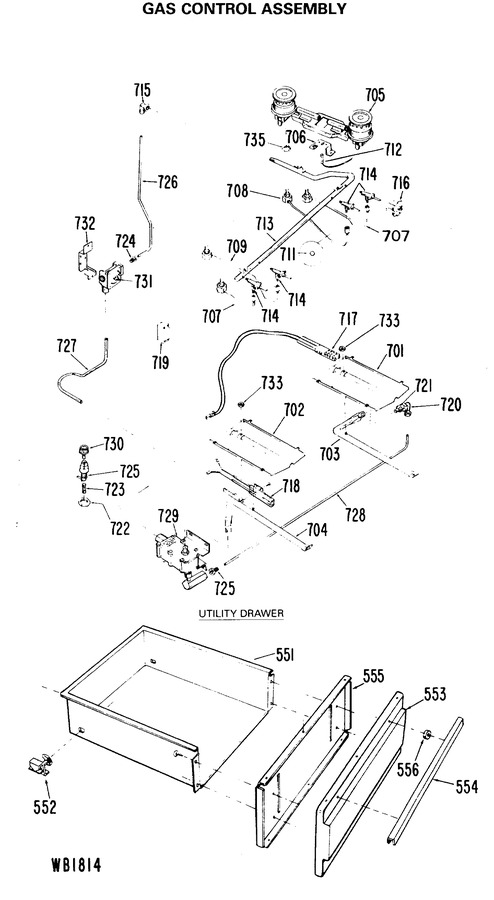

6 - Gas Control Assembly
7 - Oven Door
8 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 551 | WB58X56 | Drawer-body |
|
- | |||||
| 552 | WB39X60 | Glide Drawer |
|
- | |||||
| 553 | WB56X1855 | Panel Black |
|
- | |||||
| 554 | WB15X233 | Handle |
|
- | |||||
| 555 | WB56X1887 | Shield-panel |
|
- | |||||
| 556 | WB2X9052 | Fastener-spacer |
|
- | |||||
| 556 | WB1X1024 | Screw-handle |
|
- | |||||
| 701 | WB49X5473 | Baffle-broiler |
|
- | |||||
| 702 | WB49X592 | Baffle-oven |
|
- | |||||
| 703 | WB28X65 | Burner-broiler |
|
- | |||||
| 704 | WB28X66 | Burner-oven |
|
- | |||||
| 705 | WB28X67 | Burner-top Double |
|
- | |||||
| 706 | WB2X9364 | Retainer Igniter |
|
- | |||||
| 706 | WB2X9365 | Brkt-burner Mounting |
|
- | |||||
| 707 | WB2X8012 | Burner Tube (r.f.) |
|
- | |||||
| 707 | WB2X8013 | Burner Tube (l.f.) |
|
- | |||||
| 708 | WB2X8014 | Burner Tube (r.r.) |
|
- | |||||
| 709 | WB2X8015 | Burner Tube (l.r.) |
|
- | |||||
| 711 | WB2X4746 | Ferrule |
|
- | |||||
| 712 | WB2X9366 | Igniter Top Burner |
|
- | |||||
| 713 | WB2X8016 | Manifold-pipe |
|
- | |||||
| 714 | WB1X5831 | Screw Valves Top Burner |
|
- | |||||
| 715 | WB2X4750 | Elbow |
|
- | |||||
| 717 | WB2X7954 | Igniter-broiler Burner |
|
- | |||||
| 718 | WB02X10016 | Igniter-oven |
|
- | |||||
| 719 | WB21X5312 | Spark Module |
|
- | |||||
| 720 | WB2X7918 | Mixer Elbow Broiler |
|
- | |||||
| 721 | WB1X1048 | Nut-hex |
|
- | |||||
| 726 | WB2X7956 | Tube Alum-regulator-elbo |
|
- | |||||
| 727 | WB2X4760 | Tube Alum Valve-regulato |
|
- | |||||
| 728 | WB2X7957 | Tube Alum Valve-mixr Elb |
|
- | |||||
| 729 | WB21X423 | Valve Safety |
|
- | |||||
| 731 | WB21X424 | Control Regulator |
|
- | |||||
| 731 | WB21X5311 | Control Regulator |
|
- | |||||
| 732 | WB2X4772 | Bracket-regulator |
|
- | |||||
| 733 | WB1X694 | Nut |
|
- | |||||
| 735 | WB1X928 | Nut Special |
|
- | |||||
| 917 | WB21X5284 | Oven-thermostat |
|
- |
