SELECT A DIAGRAM

1 - Upper Oven


2 - Power Control


3 - Upper Control Panel


4 - Upper Basic Body


5 - Upper Oven Door Parts


6 - Gas Control Assembly

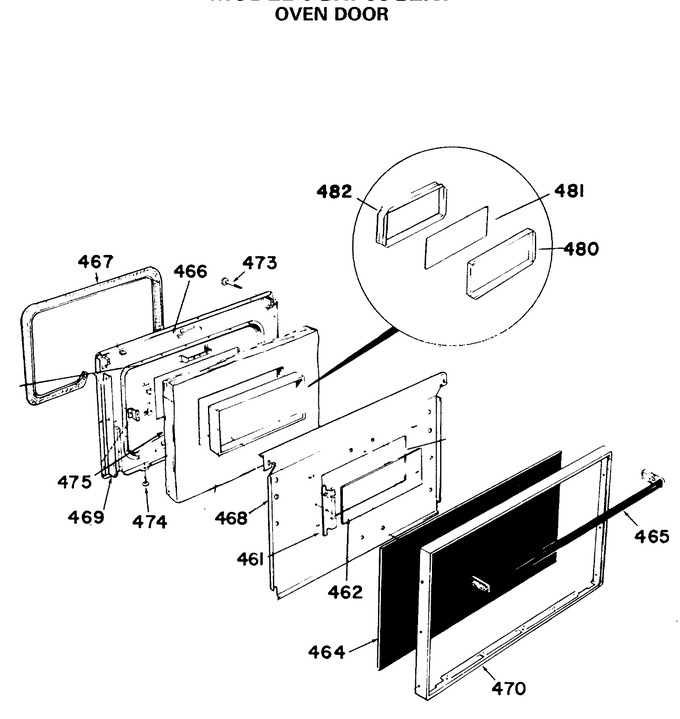

7 - Oven Door


8 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
461	WB2X7919		Bracker-glasser		Appelez-nous	-
462	WB36X5648		Glass-heat Barrier		Appelez-nous	-
464	WB55X600		Black Glass Door		Appelez-nous	-
465	WB15X245		Handle		Appelez-nous	-
466	WB56X7020		Liner		Appelez-nous	-
467	WB55X602		Seal-door		Appelez-nous	-
468	WB55X5348		Shield-wool		Appelez-nous	-
470	WB7X7067		Trim-oven Door		Appelez-nous	-
473	WB1X5818		Screw-handle		Appelez-nous	-
474	WB1X5824		Screw		Appelez-nous	-
475	WB2X7958		Insulation Wool Back		Appelez-nous	-
480	WB2X7921		Spacer-glass		Appelez-nous	-
481	WB36X5649		Glass-window		Appelez-nous	-
482	WB2X7920		Collar-glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
