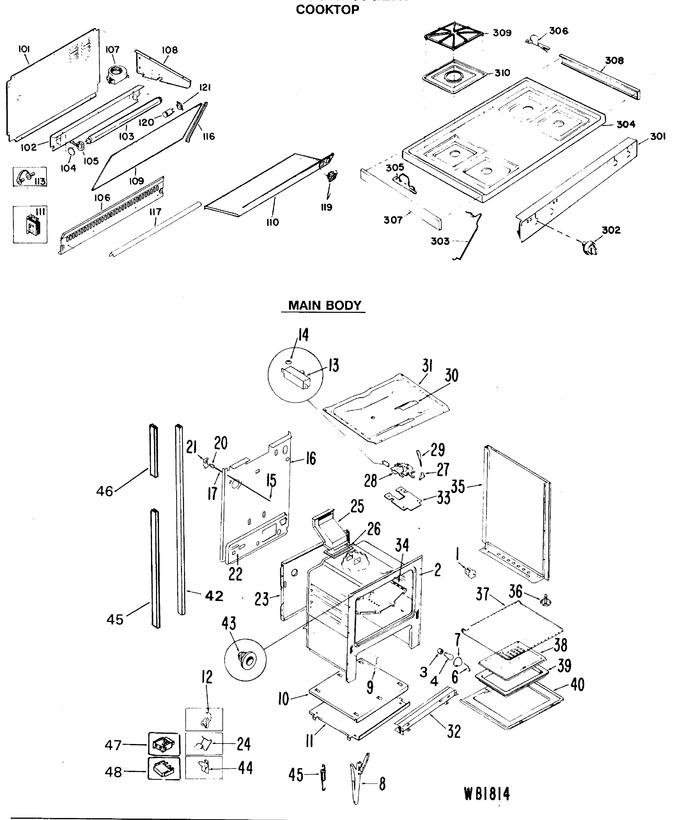

SELECT A DIAGRAM

1 - Upper Oven


2 - Power Control


3 - Upper Control Panel


4 - Upper Basic Body


5 - Upper Oven Door Parts


6 - Gas Control Assembly


7 - Oven Door


8 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB2X4961		Insulation Oven Top		Appelez-nous	-
2	WB2X7959		Insulation Front Frame		Appelez-nous	-
2	WB2X7960		Insulation Wrapper		Appelez-nous	-
2	WB2X9044		Bumper-front Main		Appelez-nous	-
2	NOT AVAIL		Liner-wrapper		Appelez-nous	-
3	WB8X262		Socket-oven Light		Appelez-nous	-
4	BUY LOCAL		Bulb-oven Light-40 Watt		Appelez-nous	-
6	WB2X9965		Wire-glass Retainer		Appelez-nous	-
8	WB10X5208		Channel Door Hinge		Appelez-nous	-
9	WB2X4763		Cover-hinge Cut-out		Appelez-nous	-
10	WB49X5535		Sheild-upper		Appelez-nous	-
11	WB63X274		Shield-lower		Appelez-nous	-
11	WB2X4766		Shield Wool		Appelez-nous	-
12	WB1X706		Clip-thermo Bulb		Appelez-nous	-
13	WB24X380		Switch Latchingb		Appelez-nous	-
14	WB1X942		Fastener-push On		Appelez-nous	-
14	WB1X933		Stud-spacer		Appelez-nous	-
15	WB1X925		Fastener-power Cord		Appelez-nous	-
15	WB18X5111		Cord-power		Appelez-nous	-
15	WB2X1268		Receptacle		Appelez-nous	-
15	WB2X1269		Plate Wall		Appelez-nous	-
16	WB63X424		Back-main		Appelez-nous	-
17	WB2X7955		Rod-light		Appelez-nous	-
20	WB24X381		Switch-door		Appelez-nous	-
21	WB2X8256		Bracket-light Switch		Appelez-nous	-
21	WB2X4958		Bracket-light Switch		Appelez-nous	-
22	WB2X153		Fstnr-cable Clamp		Appelez-nous	-
22	WB49X5536		Shield-wall Rear		Appelez-nous	-
23	WB49X5537		Shield-heat		Appelez-nous	-
24	WB1X923		Clip-wire		Appelez-nous	-
25	WB27X106		Flue		Appelez-nous	-
26	WB2X4774		Shield Latch		Appelez-nous	-
26	WB38X93		Gasket-flue		Appelez-nous	-
26	WB1X734		Screw-set Knob Mtg		Appelez-nous	-
27	WB3X5779		Knob-latch		Appelez-nous	-
28	WB14X67		Latch-door Bi-metal		Appelez-nous	-
29	WB15X234		Handle-latch		Appelez-nous	-
30	WB2X184		Cover-plate		Appelez-nous	-
31	WB56X1780		Burner Box		Appelez-nous	-
32	WB63X5224		Shield-main Front		Appelez-nous	-
33	WB2X9043		Shield Bi-metal Latch		Appelez-nous	-
33	WB63X279		Shield-oven Top		Appelez-nous	-
34	WB63X346		Shield-heat Baffle		Appelez-nous	-
35	WB63X5217		Panel Bodyside-rh-white		Appelez-nous	-
35	WB63X5219		Panel Bodyside-lh-white		Appelez-nous	-
35	WB63X344		Shield Heat-bodyside		Appelez-nous	-
36	WB1X5823		Screw-levelingdrawer		Appelez-nous	-
37	WB48X190		Rack-oven		Appelez-nous	-
38	WB49X569		Insert-broiler Pan		Appelez-nous	-
39	WB49X568		Pa Broiler		Appelez-nous	-
40	WB2X4776		Support-oven Bottom		Appelez-nous	-
40	WB53X266		Bottom-oven		Appelez-nous	-
40	WB1X1094		Screw-bottom		Appelez-nous	-
42	WB2X7974		Tube-post Rh		Appelez-nous	-
43	WB2X4791		Shield-wire		Appelez-nous	-
44	WB39X64		Glide-utility Drawer		Appelez-nous	-
45	WB2X7975		Tube-post Lh		Appelez-nous	-
46	WB2X7976		Tube Extension Lh		Appelez-nous	-
46	WB2X7977		Shield Blower Assy		Appelez-nous	-
47	WB1X5828		Plug-disconnect Female		Appelez-nous	-
48	WB1X5829		Plug-disconnect Male		Appelez-nous	-
101	WB61X6056		Back-backsplash		Appelez-nous	-
102	WB2X7910		Reflector-light		Appelez-nous	-
103	WB2X4666		Bulb-fluorescent Light		Appelez-nous	-
104	WB2X179		Insulator-light Recept		Appelez-nous	-
105	WB8X252		Receptacle-fluor. Light		Appelez-nous	-
106	WB7X7086		Trim Vent		Appelez-nous	-
107	WB26X75		Blower-motor Assembly		Appelez-nous	-
108	WB61X6058		Gusset Support-rh		Appelez-nous	-
108	WB61X6057		Gusset Support-lh		Appelez-nous	-
109	WB36X687		Glass Splasher		Appelez-nous	-
110	WB61X374		Panel-splasher-upper		Appelez-nous	-
111	WB20X87		Ballast		Appelez-nous	-
116	WB7X1385		Trim O/u Splasher-left		Appelez-nous	-
116	WB7X1386		Trim O/u Splasher-right		Appelez-nous	-
117	WB7X7078		Trim Splasher Filler		Appelez-nous	-
119	WB24X5259		Switch Rocker		Appelez-nous	-
120	WB2X7914		Starter		Appelez-nous	-
121	WB2X7913		Recpt Starter		Appelez-nous	-
301	WB7X1553		Panel-manifold		Appelez-nous	-
302	WB3X712		Knob Top Valve		Appelez-nous	-
303	WB2X7968		Rod Top Support		Appelez-nous	-
304	WB62X1643		Main-top Chrome		Appelez-nous	-
305	WB10X5201		Braket-main Top Hinge Lh		Appelez-nous	-
306	WB10X5200		Braket-main Top Hinge Rh		Appelez-nous	-
307	WB7X1362		Trim-main Top Lh		Appelez-nous	-
308	WB7X1527		Trim-main Top Rh		Appelez-nous	-
309	WB32X5087		Grate-square		Appelez-nous	-
310	WB32X90		Pan-burner-square		Appelez-nous	-
1040	WB2X180		Fastener		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
