1 - Upper Oven
2 - Power Control
3 - Upper Control Panel
4 - Upper Basic Body

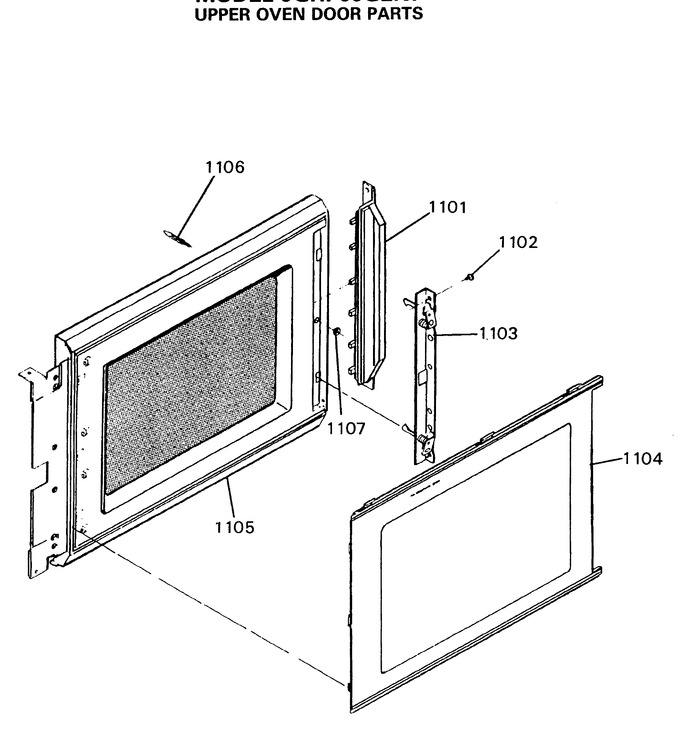

5 - Upper Oven Door Parts
6 - Gas Control Assembly
7 - Oven Door
8 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1101 | WB15X5184 | Handle |
|
- | |||||
| 1102 | WB1X5825 | Screw-latch |
|
- | |||||
| 1103 | WB10X5203 | Angle-hook Assy |
|
- | |||||
| 1104 | WB55X5350 | Cover-door |
|
- | |||||
| 1105 | WB55X5351 | Door-sub Assemble |
|
- | |||||
| 1106 | WB1X5826 | Screw-door Strike |
|
- | |||||
| 1107 | WB1X5827 | Screw-door |
|
- | |||||
| 1107 | WB1X1035 | Hex Nut-door Strike |
|
- |
