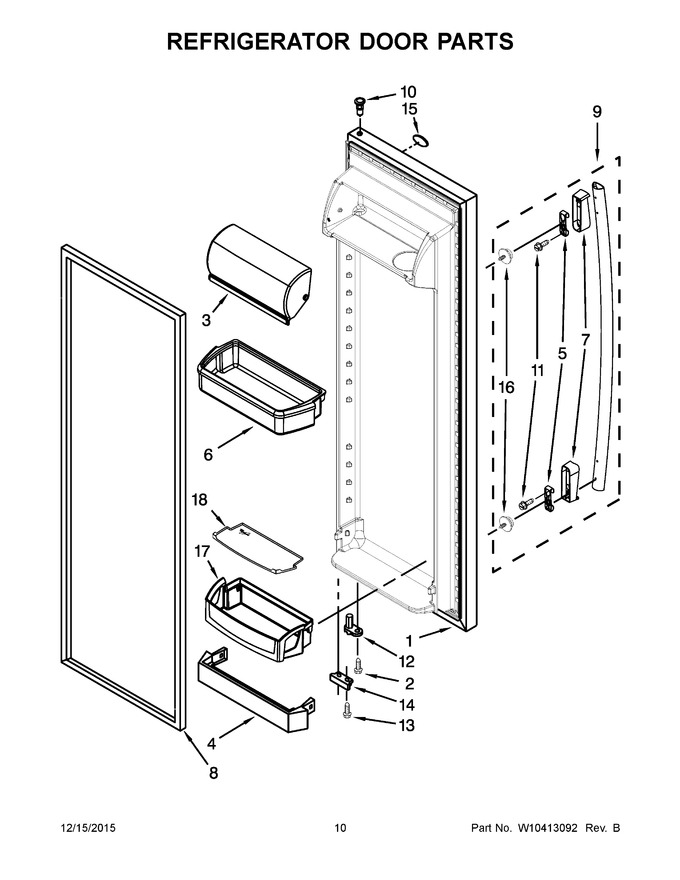

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10271939		Door, Refrigerator (includes Item #8) (stainless)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
5	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 36.55
6	W10158506		Bin, Door				$ 109.63
7	W10127772		Endcap, Handle (grey)				$ 49.75
8	WPW10136734		Gasket, Door (grey)   (Replaces: 2327163)				$ 335.39
9	WPW10257118K		Handle, Door (stainless)   (Replaces: W10257118)				$ 196.99
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
11	W10267047		Screw   (Replaces: W10201588)				$ 13.47
12	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	W10185570		Bracket, Door Stop (silver)				$ 11.59
15	2220214		Nameplate				$ 32.43
16	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
17	2223463		Bin, Door		Appelez-nous	-
18	2223464K		Mat, Bin		Appelez-nous	-
