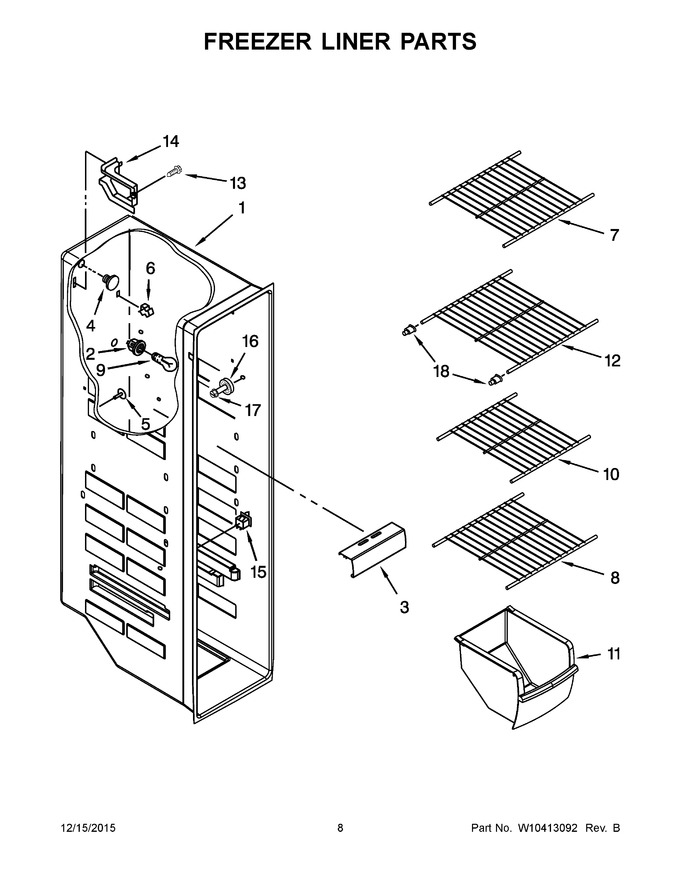

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
3	2198479		Lens, Light		Appelez-nous	-
4	2223173		Plug, Fill Tube				$ 9.24
5	WP941839		Plug, Hole (white)   (Replaces: 941839)				$ 8.03
6	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
7	W10318945		Shelf, Wire				$ 103.20
8	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 91.81
9	W11679940		Bulb, Light   (Replaces: W10311505)			Immediately	$ 11.30
10	W10318946		Shelf, Wire				$ 37.05
11	W11577967		Bin, Freezer   (Replaces: 2309757)				$ 96.30
12	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 155.23
13	WP489478		Screw   (Replaces: 489478)				$ 8.18
14	2160912		Cover, Wiring		Appelez-nous	-
15	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
16	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
17	W10191952		Screw				$ 5.65
18	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
