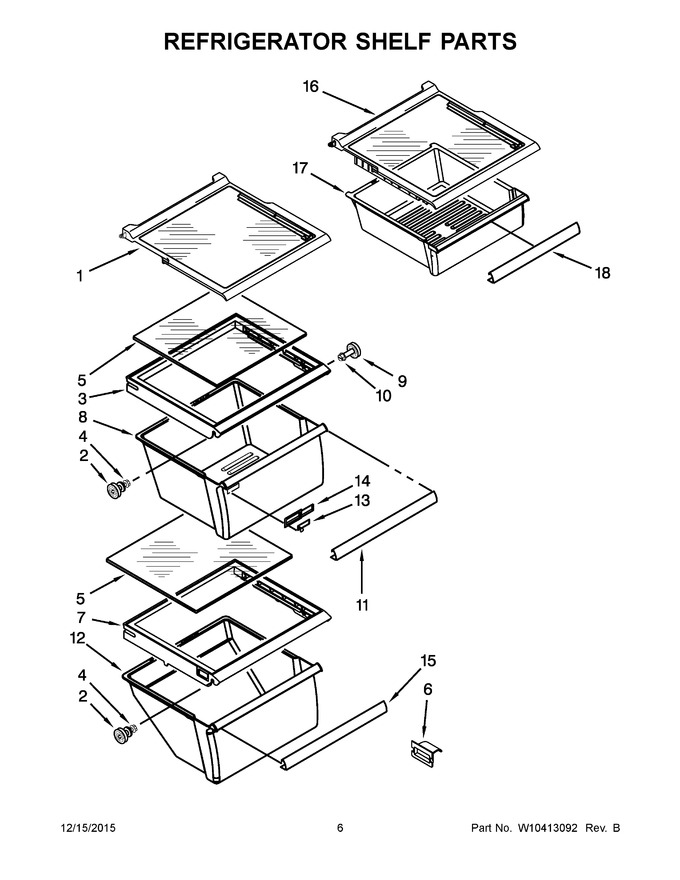

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276348 | Assembly, Shelf (Replaces: W10276348) |
|
Immediately | $ 223.91 | ||||
| 2 | W11223328 | Assembly, Shelf Stud (Replaces: W10173126) |
|
Immediately | $ 14.07 | ||||
| 3 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 291.29 | |||||
| 4 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.05 | |||||
| 5 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 6 | 2179350 | Deflector, Air |
|
$ 81.80 | |||||
| 7 | W10508993 | Assembly, Pan Cover (Replaces: 2311726) |
|
$ 291.29 | |||||
| 8 | WP2188656 | Pan, Crisper (Replaces: 2188652) |
|
$ 136.40 | |||||
| 9 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 10 | W10191952 | Screw |
|
$ 5.65 | |||||
| 11 | WP2179234 | Trim, Crisper Pan Handle (Replaces: 2255593) |
|
$ 84.35 | |||||
| 12 | WP2188664 | Pan, Meat (Replaces: 2188654) |
|
Immediately | $ 85.30 | ||||
| 13 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 29.14 | |||||
| 14 | WP2179343 | Body, Humidity Control (Replaces: 2179343) |
|
$ 32.40 | |||||
| 15 | WP2179234 | Trim, Meat Pan Handle (Replaces: 2255592) |
|
$ 84.35 | |||||
| 16 | W10298280 | Shelf, Snack Pan |
|
- | |||||
| 17 | WP2309517 | Pan, Snack (Replaces: 2309518) |
|
$ 126.72 | |||||
| 18 | WP2179243 | Trim, Snack Pan (Replaces: 2309519) |
|
$ 104.43 |
