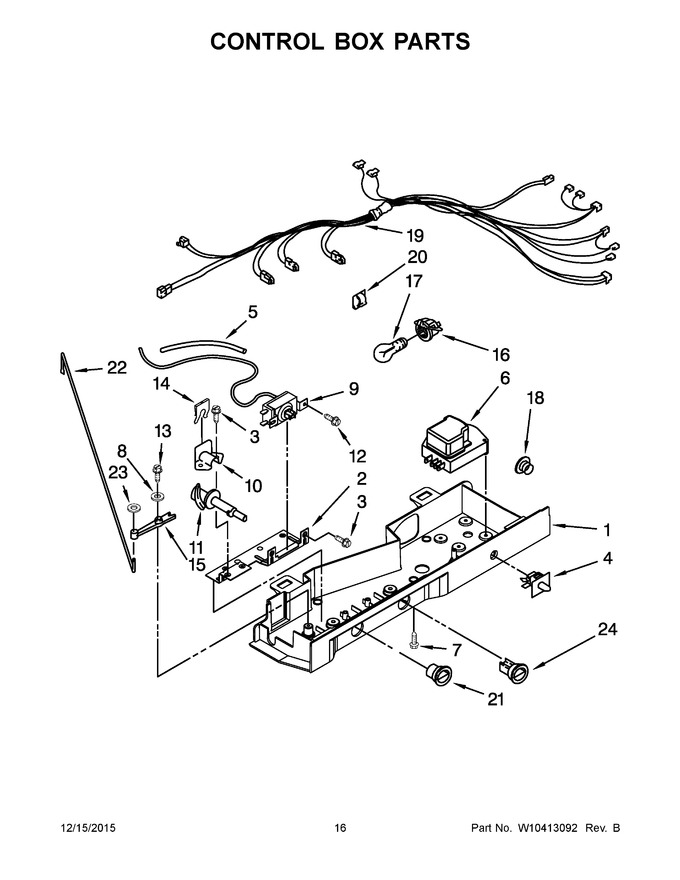

09 - Control Box Parts


10 - Unit Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167079		Box, Control		Appelez-nous	-
2	2311611		Bracket, Mounting		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Switch, Plunger   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2196003		Tube, Thermostat Barrier   (Replaces: 2196001)				$ 8.35
6	W10822278		Timer, Defrost   (Replaces: 2188375)			Immediately	$ 34.44
7	489392		Screw   (Replaces: 489398)				$ 14.02
8	489203		Washer, Spring		Appelez-nous	-
9	WP2198202		Thermostat   (Replaces: 2198202)			Immediately	$ 78.43
10	1110560		Body, Bearing				$ 11.30
11	WP2182195		Assembly, Cam   (Replaces: 2182195)				$ 5.13
12	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
13	627068		Screw				$ 12.73
14	WP2196062		Damper, Control   (Replaces: 2196062)				$ 11.25
15	1110559		Arm, Pivot				$ 8.35
16	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
17	W11679940		Bulb, Light   (Replaces: W10311505)			Immediately	$ 11.30
18	940014		Plug, Hole				$ 18.33
19	2311636		Harness, Control Box		Appelez-nous	-
20	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 8.14
21	2311615		Knob, Control				$ 52.26
22	2311631		Rod, Connecting		Appelez-nous	-
23	489285		Fastener, Push-on		Appelez-nous	-
24	W10723843		Knob, Thermostat   (Replaces: 2311614)				$ 27.92
