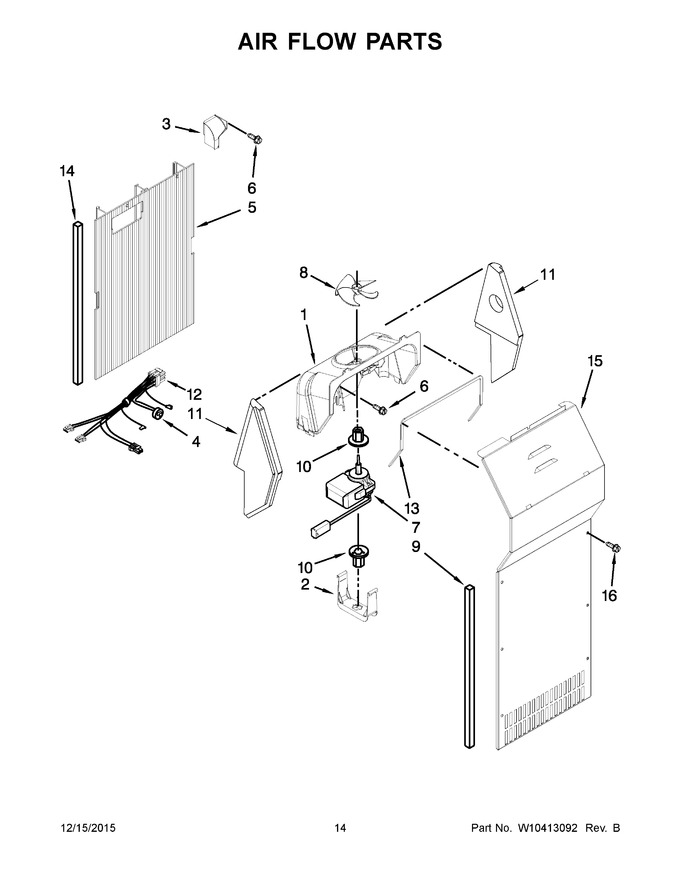

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Scroll, Fan   (Replaces: 2182120)			Immediately	$ 117.57
2	2155590		Retainer, Fan Motor				$ 5.83
3	W10803597		Scoop, Air   (Replaces: 2161229)				$ 86.12
4	WPW10225581		Bi-metal, Defrost   (Replaces: W10225581)			Immediately	$ 50.77
5	W11755719		Duct, Freezer Air   (Replaces: 2203594)		Appelez-nous	-
6	WP489478		Screw   (Replaces: 489478)				$ 8.18
7	4389144		Motor, Fan   (Replaces: W10131845)			Immediately	$ 78.61
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
10	WP2176759		Grommet, Motor   (Replaces: 2176759)				$ 8.16
11	4388358		Support, Fan Scroll (left Hand)   (Replaces: 2203596)				$ 32.72
12	W11084324		Harness, Evaporator Fan (includes Bi-metal Defrost)   (Replaces: W10297482)				$ 111.27
13	WP2155789		Gasket   (Replaces: 2155789)				$ 8.18
14	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
15	W10194476		Cover, Evaporator		Appelez-nous	-
16	4389654		Screw   (Replaces: 8281159)				$ 14.58
11A	4388358		Support, Fan Scroll (right Hand)   (Replaces: 2203595)				$ 32.72
