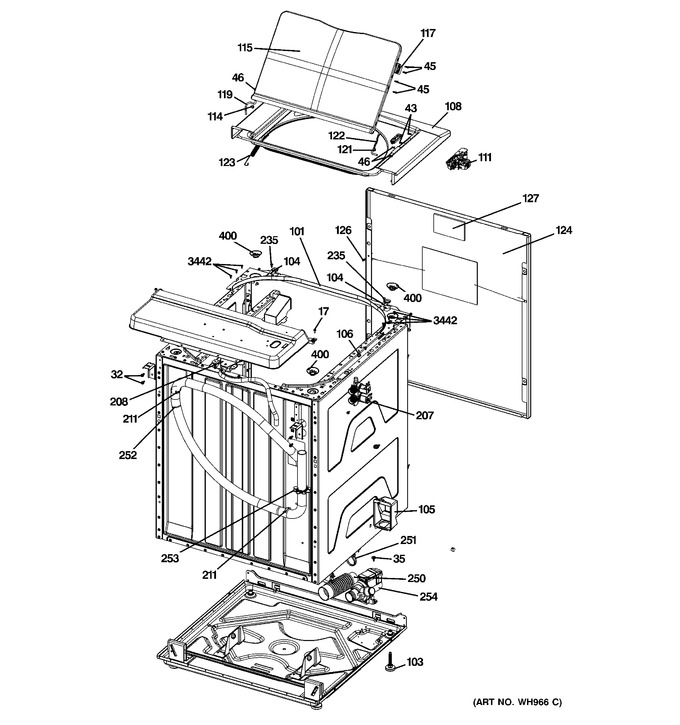

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | WW01A00097 | Screw (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 32 | WH01X10593 | Scr 12-14 B |
|
- | |||||
| 35 | WH01X10600 | Scr 8-18 B Hxw 3/8 S Zn |
|
- | |||||
| 43 | WW01A00449 | Scr 8-16 B Flp .525 S Zn (Replaces: WH01X10631) |
|
Immediately | $ 4.37 | ||||
| 45 | WW01A00048 | Scr 8-16 B Flp .525 S Zn (Replaces: WH01X10622) |
|
Immediately | $ 11.01 | ||||
| 46 | WH2X1211 | Screw |
|
- | |||||
| 101 | WH16X10143 | Brace Front Upper |
|
- | |||||
| 103 | WW03L00038 | Leg Leveling (Replaces: WH01X10594) |
|
Immediately | $ 11.25 | ||||
| 104 | WW03A00013 | Clip Locking (Replaces: WH01X10595) |
|
Immediately | $ 4.37 | ||||
| 105 | WH44X10280 | Cover Hose |
|
- | |||||
| 106 | WW03A00028 | Pin Alignment (Replaces: WH01X10596) |
|
$ 3.97 | |||||
| 108 | WW03L00015 | Cover Top (Replaces: WH44X10282) |
|
$ 73.11 | |||||
| 111 | WW03F00016 | Lock Lid (Replaces: WH44X10288) |
|
Immediately | $ 73.47 | ||||
| 114 | WH01X10625 | Bushing Hinge |
|
- | |||||
| 115 | WW03L00048 | Lid Washer (Replaces: WH44X10284) |
|
Immediately | $ 66.43 | ||||
| 117 | WW03F00001 | Actuator Lid (Replaces: WH43X10057) |
|
Immediately | $ 5.36 | ||||
| 119 | WH44X10289 | Hinge Washer Cover Rh |
|
- | |||||
| 121 | WH01X10627 | Bumper Lid |
|
- | |||||
| 122 | WW03L00007 | Hinge Washer Cover Lh (Replaces: WH44X10290) |
|
$ 7.94 | |||||
| 123 | WW03A00033 | Spring Cover (Replaces: WH01X10628) |
|
$ 10.12 | |||||
| 124 | WW01L01352 | Panel Front Asm (Replaces: WH42X10886) |
|
$ 111.11 | |||||
| 126 | WH02X10347 | Stud Grounding |
|
- | |||||
| 127 | WH01X10630 | Damper Pad |
|
- | |||||
| 207 | WH13X10050 | Water Valve |
|
- | |||||
| 208 | WW03L00026 | Funnel Shower Head (Replaces: WH13X10051) |
|
$ 26.20 | |||||
| 211 | WH01X10604 | Clip Draining Hose |
|
- | |||||
| 235 | WE2X263 | Scr |
|
- | |||||
| 250 | WW03F00053 | Hose Drain Inlet (Replaces: WH41X10280) |
|
Immediately | $ 19.54 | ||||
| 251 | WH01X10598 | Clamp |
|
- | |||||
| 252 | WW03F00542 | Hose Drain Asm (Replaces: WH41X10281) |
|
Immediately | $ 59.28 | ||||
| 253 | WH41X10282 | Stop - Drain Hose |
|
- | |||||
| 254 | WW02L00622 | Pump Drain (Replaces: WH23X10040) |
|
Immediately | $ 91.78 | ||||
| 400 | WH01X10602 | Seat Ball Joint |
|
- | |||||
| 3442 | WE2M281 | Scr 8-18 Ab 1/2 |
|
- |
