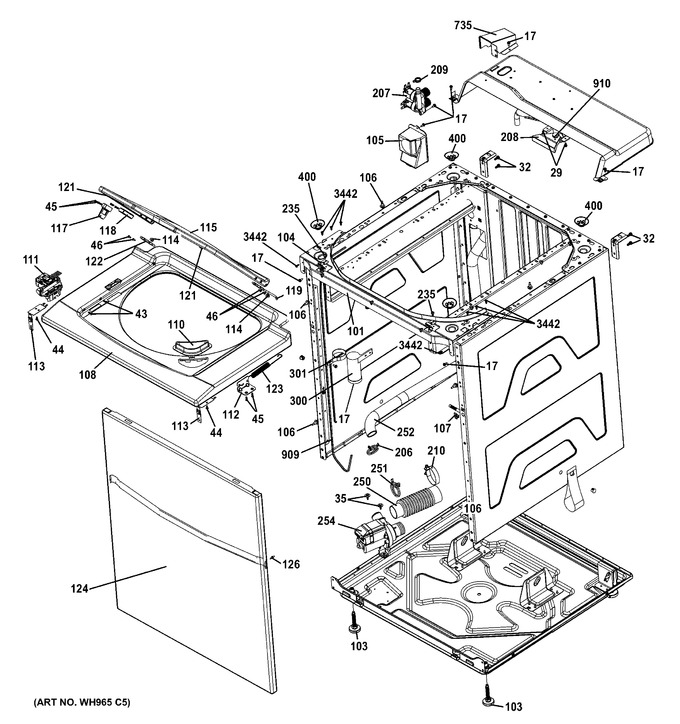

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
32	WH01X10593		Scr 12-14 B		Appelez-nous	-
35	WH01X10600		Scr 8-18 B Hxw 3/8 S Zn		Appelez-nous	-
43	WW01A00449		Scr 8-16 B Flp .525 S Zn   (Replaces: WH01X10631)			Immediately	$ 4.37
44	WH01X10624		Scr 6-20 B Trt 3/8 S		Appelez-nous	-
45	WW01A00048		Scr 8-16 B Flp .525 S Zn   (Replaces: WH01X10622)			Immediately	$ 11.01
46	WH2X1211		Screw		Appelez-nous	-
101	WH16X10143		Brace Front Upper		Appelez-nous	-
103	WW03L00038		Leg Leveling   (Replaces: WH01X10594)			Immediately	$ 11.25
104	WW03A00013		Clip Locking   (Replaces: WH01X10595)			Immediately	$ 4.37
105	WH44X10280		Cover Hose		Appelez-nous	-
106	WW03A00028		Pin Alignment   (Replaces: WH01X10596)				$ 3.97
107	WH01X10597		Clip Ground		Appelez-nous	-
108	WW03L00015		Cover Top   (Replaces: WH44X10282)				$ 73.11
110	WH01X10621		Funnel Bleach		Appelez-nous	-
111	WW03F00016		Lock Lid   (Replaces: WH44X10288)			Immediately	$ 73.47
112	WH16X10153		Bracket Spring		Appelez-nous	-
113	WH01X10623		Clip Cover		Appelez-nous	-
114	WH01X10625		Bushing Hinge		Appelez-nous	-
115	WW03L00048		Lid Washer   (Replaces: WH44X10284)			Immediately	$ 66.43
117	WW03F00001		Actuator Lid   (Replaces: WH43X10057)			Immediately	$ 5.36
118	WW03F00604		Magnet   (Replaces: WH01X10626)			Immediately	$ 11.71
119	WH44X10289		Hinge Washer Cover Rh		Appelez-nous	-
121	WH01X10627		Bumper Lid		Appelez-nous	-
122	WW03L00007		Hinge Washer Cover Lh   (Replaces: WH44X10290)				$ 7.94
123	WW03A00033		Spring Cover   (Replaces: WH01X10628)				$ 10.12
124	WW01L01352		Panel Front Asm   (Replaces: WH42X10886)				$ 111.11
126	WH02X10347		Stud Grounding		Appelez-nous	-
206	WH01X10599		Clamp		Appelez-nous	-
207	WH13X10050		Water Valve		Appelez-nous	-
208	WW03L00026		Funnel Shower Head   (Replaces: WH13X10051)				$ 26.20
209	WH1X2036		Univ Clamp		Appelez-nous	-
210	WH01X10603		Clamp Tub Outlet		Appelez-nous	-
235	WE2X263		Scr		Appelez-nous	-
250	WW03F00053		Hose Drain Inlet   (Replaces: WH41X10280)			Immediately	$ 19.54
251	WH01X10598		Clamp		Appelez-nous	-
252	WW03F00542		Hose Drain Asm   (Replaces: WH41X10281)			Immediately	$ 59.28
254	WW02L00622		Pump Drain   (Replaces: WH23X10040)			Immediately	$ 91.78
300	WW01F00342		Run Capacitor   (Replaces: WH12X10513)				$ 29.08
301	WH01X10601		Clip Capacitor		Appelez-nous	-
400	WH01X10602		Seat Ball Joint		Appelez-nous	-
735	WE1M1000		Cover Harness Main		Appelez-nous	-
909	WW03F00004		Harness Main   (Replaces: WH19X10085)				$ 261.78
910	WH12X10512		Thermistor Asm		Appelez-nous	-
3442	WE2M281		Scr 8-18 Ab 1/2		Appelez-nous	-
