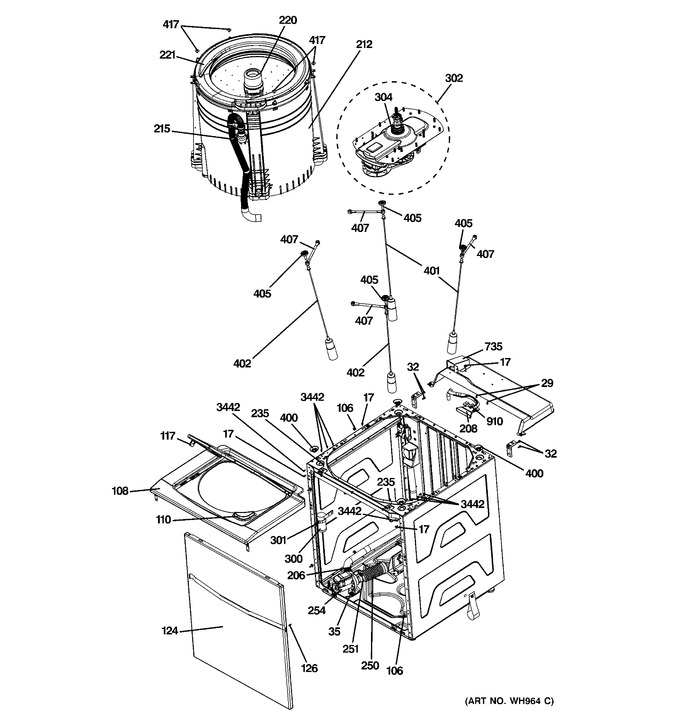

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
32	WH01X10593		Scr 12-14 B		Appelez-nous	-
35	WH01X10600		Scr 8-18 B Hxw 3/8 S Zn		Appelez-nous	-
106	WW03A00028		Pin Alignment   (Replaces: WH01X10596)				$ 3.97
108	WW03L00015		Cover Top   (Replaces: WH44X10282)				$ 73.11
110	WH01X10621		Funnel Bleach		Appelez-nous	-
117	WW03F00001		Actuator Lid   (Replaces: WH43X10057)			Immediately	$ 5.36
124	WW01L01352		Panel Front Asm   (Replaces: WH42X10886)				$ 111.11
126	WH02X10347		Stud Grounding		Appelez-nous	-
206	WH01X10599		Clamp		Appelez-nous	-
208	WW03L00026		Funnel Shower Head   (Replaces: WH13X10051)				$ 26.20
212	WH45X10149		Tub 27"		Appelez-nous	-
215	WH01X10605		Elbow Over Flow		Appelez-nous	-
220	WH44X20435		Cover Fsd		Appelez-nous	-
221	WW03F00361		Tub Cover Asm 27"   (Replaces: WH44X10286)			Immediately	$ 29.28
235	WE2X263		Scr		Appelez-nous	-
250	WW03F00053		Hose Drain Inlet   (Replaces: WH41X10280)			Immediately	$ 19.54
251	WH01X10598		Clamp		Appelez-nous	-
254	WW02L00622		Pump Drain   (Replaces: WH23X10040)			Immediately	$ 91.78
300	WW01F00342		Run Capacitor   (Replaces: WH12X10513)				$ 29.08
301	WH01X10601		Clip Capacitor		Appelez-nous	-
302	WW01F01122		Supports Assembly   (Replaces: WH16X10146)			Immediately	$ 164.99
304	WH08X10063		Seal Tub		Appelez-nous	-
400	WH01X10602		Seat Ball Joint		Appelez-nous	-
401	WG04F03748		Rod Assembly Rear   (Replaces: WH16X10150)				$ 107.19
402	WW03A00077		Rod Assembly Front   (Replaces: WH16X10151)			Immediately	$ 54.88
405	WW01F00265		Socket Rod Support   (Replaces: WH01X10620)				$ 3.97
407	WH01X20442		Strap Assembly		Appelez-nous	-
417	WH2X694		Scr 10-12 A Hx 1/2 S		Appelez-nous	-
735	WE1M1000		Cover Harness Main		Appelez-nous	-
910	WH12X10512		Thermistor Asm		Appelez-nous	-
3442	WE2M281		Scr 8-18 Ab 1/2		Appelez-nous	-
