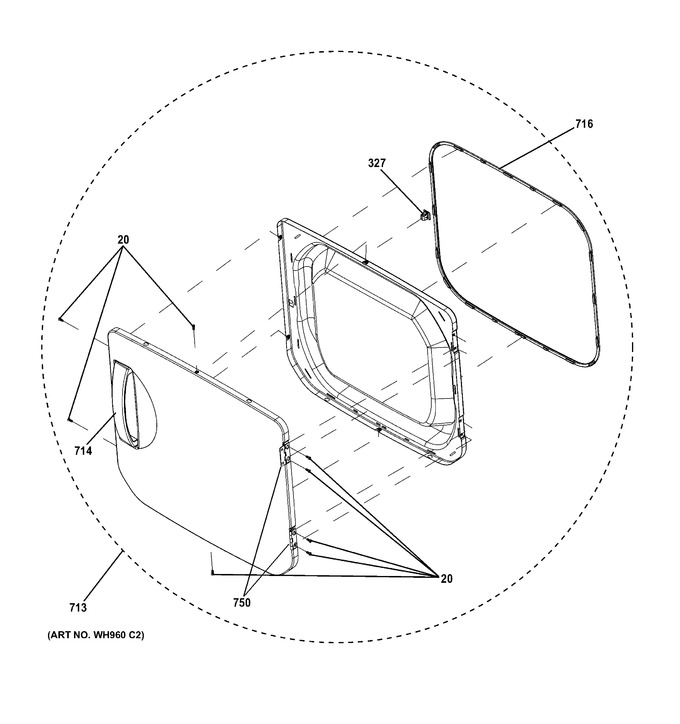

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WE2M302		Screw		Appelez-nous	-
327	WE1M536		Latch		Appelez-nous	-
713	WE10M151		Door Asm		Appelez-nous	-
714	WW03L00411		Handle Door   (Replaces: WE1M1068)			Immediately	$ 18.78
716	WW03A00045		Gasket Door   (Replaces: WE1M1006)			Immediately	$ 62.13
750	WW02L00028		Hinge   (Replaces: WE1M1033)			Immediately	$ 9.92

    View Diagram in Separate Window       Print Part List
