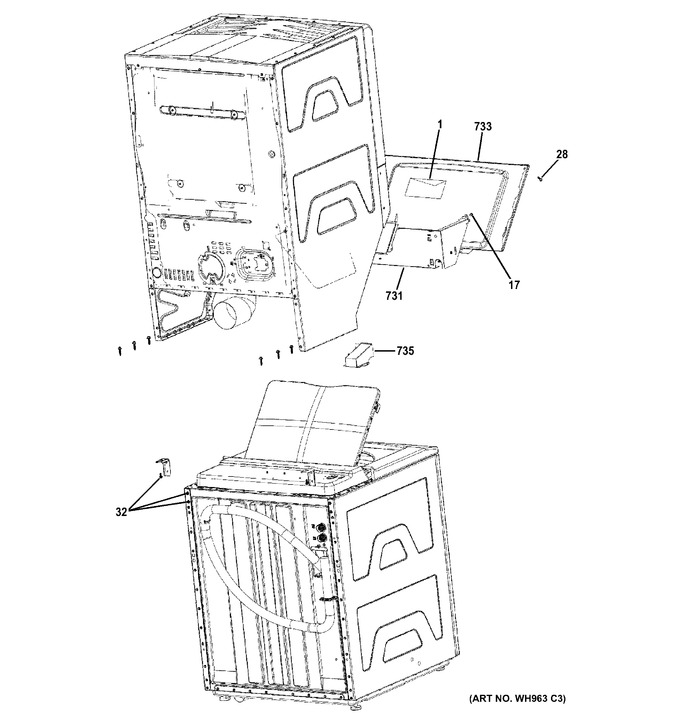

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16655-6		Installation Instruction		Appelez-nous	-
1	31-16657		Pm Mini Manual		Appelez-nous	-
1	49-90417		Pm Use & Care		Appelez-nous	-
1	WW01L01174		Suspension Strap 27"   (Replaces: WH01X10633)			Immediately	$ 38.81
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
28	WE2M305		Scr 8-18 Ab Trq2 5/8 S		Appelez-nous	-
32	WH01X10593		Scr 12-14 B		Appelez-nous	-
731	WE19M1700		Enclosure Board		Appelez-nous	-
733	WE20M474		Panel Access		Appelez-nous	-
735	WE1M1000		Cover Harness Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
