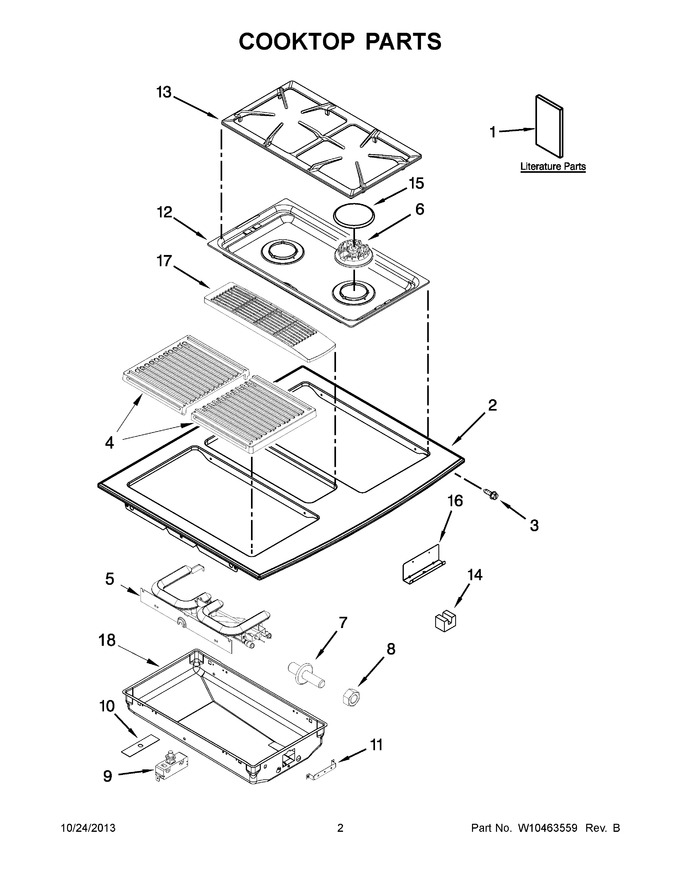

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	8101P702-60		Installation Instructions		Appelez-nous	-
1	W10394680		Wiring Diagram (english)		Appelez-nous	-
1	8119P395-60		Wiring Diagram (french)		Appelez-nous	-
1	8113P754-60		Use & Care Guide		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W10331861		Top, Main		Appelez-nous	-
3	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
4	7518P070-60		Grate, Grille		Appelez-nous	-
5	7505P290-60		Assembly, Grille Burner		Appelez-nous	-
6	WPW10406243		Burner Head, Auxiliary (6k) (right Rear)   (Replaces: W10406243)			Immediately	$ 39.08
6	7540P047-60		Burner Head (16k) (right Front)		Appelez-nous	-
7	71001764		Pin, Locator   (Replaces: 7113P020-60)				$ 10.12
8	Y052721		Nut   (Replaces: 7103P160-60)				$ 24.95
9	WP7450P012-60		Switch, Infinite   (Replaces: 7450P012-60)			Immediately	$ 158.13
10	7003P129-60		Switch, Insulator		Appelez-nous	-
11	7112P150-60		Clip, Terminal Block		Appelez-nous	-
12	2001F270-09		Top, Black				$ 255.99
13	7518P348-60		Grate, Cartridge		Appelez-nous	-
14	8255P412-60		Block, Element Support				$ 31.52
15	7504P204-60		Cap, Burner, Black (right Front)		Appelez-nous	-
15	WP8284669		Cap, Burner, Black (right Rear)   (Replaces: 7504P202-60)			Immediately	$ 75.59
16	3807F743-51		Support, Cartridge Pan		Appelez-nous	-
17	7772P045-60		Grille, Air		Appelez-nous	-
18	3401F099-19		Pan, Grille				$ 188.12
