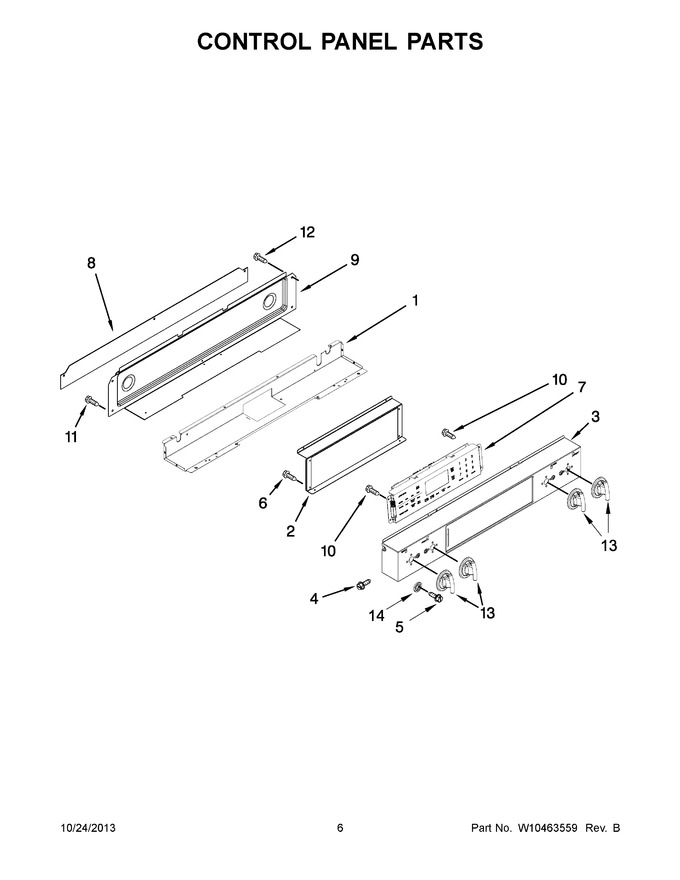

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F739-51 Support, Control Appelez-nous -
2 3801F932-51 Bracket, Clock Appelez-nous -
3 WP5760M373-60 Panel, Control (including Membrane Switch)   (Replaces: 5760M373-60) Special Order $ 611.87

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

5 7101P208-60 Screw Special Order $ 11.92

6 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 14.72

7 WP8507P232-60 Control, Eociii   (Replaces: 8507P232-60) In-Stock Immediately $ 411.11

8 3604F433-51 Shield, Side Special Order $ 31.44

9 4005F810-51 Cover, Bottom Wire Special Order $ 248.98

10 WP59002061 Screw   (Replaces: 7101P077-60) Special Order $ 8.18

11 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

12 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

13 WPW10175695 Knobs   (Replaces: W10175695) In-Stock Immediately $ 28.92

14 W10220976 Bezel, Knob (left Front & Left Rear) Special Order $ 54.82

14 7740P168-60 Bezel, Knob (right Rear) Special Order $ 91.01

14 W10220976 Bezel, Knob (right Front)   (Replaces: 7740P169-60) Special Order $ 54.82
