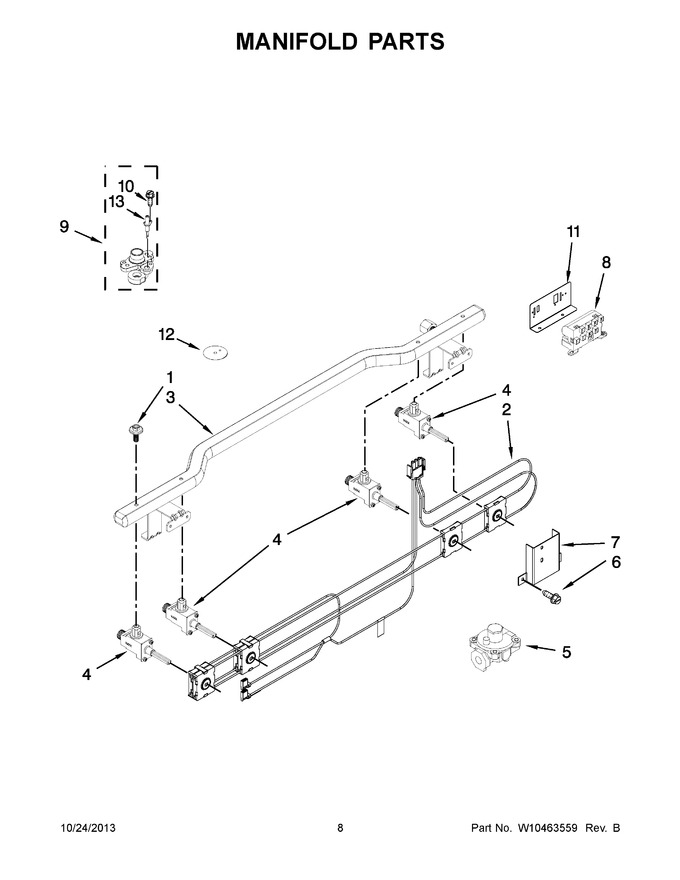

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P639-60		Screw				$ 5.53
2	W10183582		Assembly, Ignitor Switch				$ 243.47
3	W10165142		Pipe, Manifold				$ 114.40
4	W10185517		Valve, Top Burner (left Front & Left Rear)				$ 166.89
4	7502P564-60		Valve, Top Burner (16k) (right Front)				$ 117.14
4	7502P561-60		Valve, Top Burner (5k) (right Rear)				$ 177.73
5	7510P077-60		Regulator, Pressure		Appelez-nous	-
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
7	3801F913-51		Bracket, Regulator Support		Appelez-nous	-
8	WP7431P064-60		Module, Spark   (Replaces: 7431P064-60)				$ 324.44
9	WPW10407678		Holder, Orifice (16k) (right Front)   (Replaces: 7527P081-60)				$ 126.04
9	WPW10407680		Holder, Orifice (5k) (right Rear)   (Replaces: 7527P084-60)				$ 115.09
10	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
11	3807F752-45		Support, Spark Module				$ 27.55
12	WP74008212		Cover, Valve Switch   (Replaces: 7724P194-60)				$ 8.02
13	WP74006072		Ignitor, E-burner   (Replaces: 7432P112-60)			Immediately	$ 112.83
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10224724		Tubing, Supply				$ 116.73
NI	7506P471-60		Tubing (left Front)				$ 51.82
NI	7506P472-60		Tubing (left Rear)		Appelez-nous	-
NI	7506P473-60		Tubing (right Front)		Appelez-nous	-
NI	7506P474-60		Tubing (right Rear)		Appelez-nous	-
