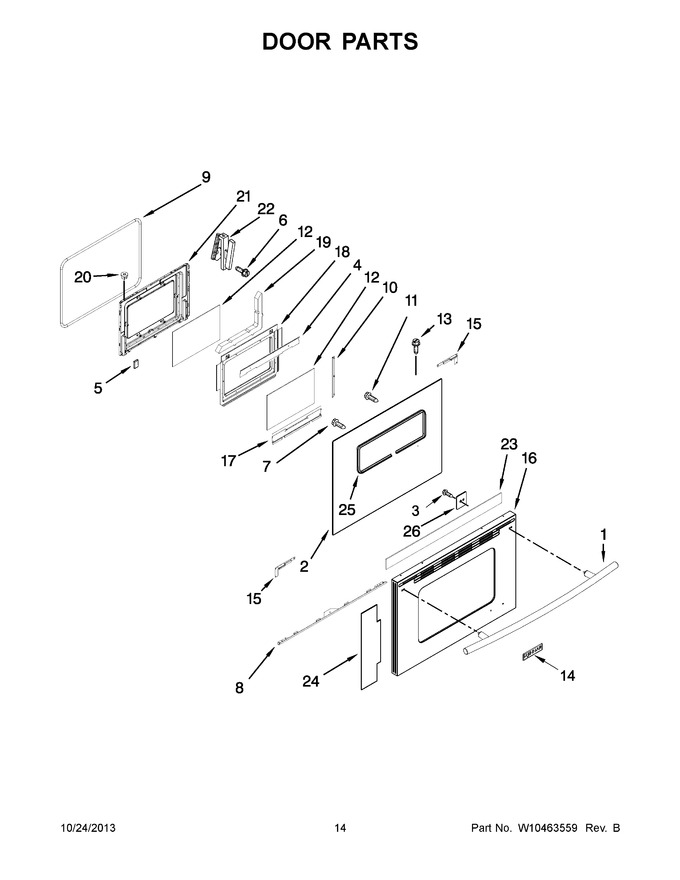

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7701P475-60		Handle, Door   (Replaces: 7701P475-60)				$ 293.93
2	7902P768-60		Glass, Inner (coated)		Appelez-nous	-
3	7101P668-60		Screw, Handle		Appelez-nous	-
4	3604F418-51		Shield				$ 77.46
5	7112P034-60		Clip, Door Glass		Appelez-nous	-
6	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	3804F265-45		Retainer, Door Glass Support				$ 9.40
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
12	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	W11233072		Screw   (Replaces: 7101P634-60)			Immediately	$ 14.72
14	7719P087-60		Nameplate		Appelez-nous	-
15	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
15	3804F307-51		Retainer, Glass (right)				$ 109.75
16	7760P158-60		Panel, Door				$ 171.57
17	3804F317-80		Retainer, Glass				$ 65.61
18	3601F373-51		Baffle, Oven Door Window				$ 284.93
19	7002P246-60		Insulation, Oven Door				$ 58.49
20	WP74001574		Nut, Snap (black)   (Replaces: 7103P141-60)			Immediately	$ 11.74
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52
23	WP74010043		Insulation, Door   (Replaces: 7002P427-60)				$ 78.37
24	74011048		Insulation, Foil   (Replaces: 7002P463-60)				$ 83.69
25	WP74009029		Gasket, Window   (Replaces: 7201P141-60)			Immediately	$ 169.43
26	W10167659		Backplate				$ 24.52
