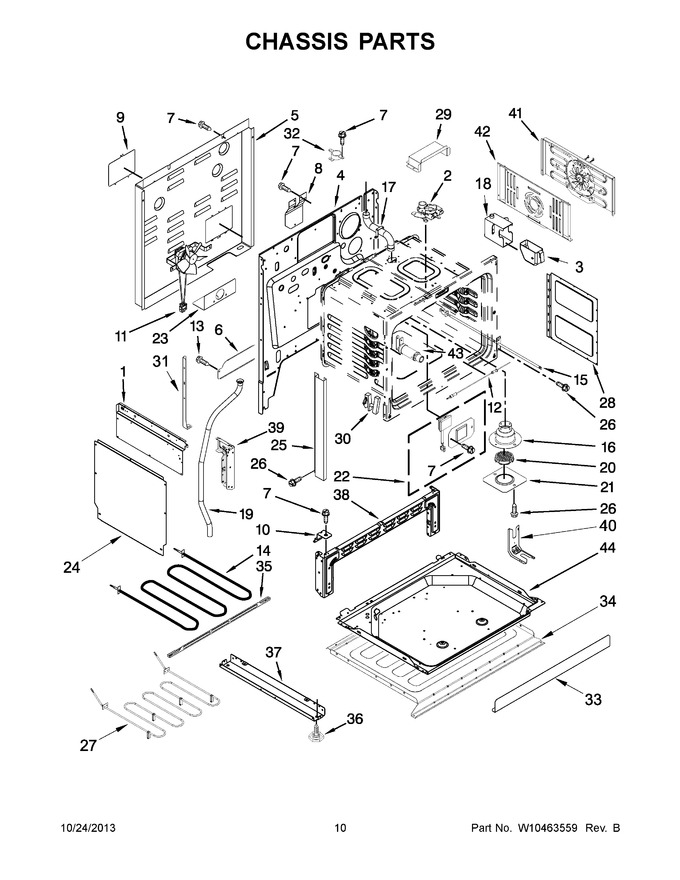

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F201-51 | Panel, Shield (left) |
|
$ 32.51 | |||||
| 1 | 2618F206-51 | Panel, Shield (right) |
|
$ 135.68 | |||||
| 2 | WPW10274035 | Latch, Combo Switch (Replaces: W10274035) |
|
$ 336.07 | |||||
| 3 | 8312P190-60 | Cup, Grease |
|
$ 33.51 | |||||
| 4 | 3804F313-51 | Back, Main |
|
- | |||||
| 5 | 4005F810-51 | Cover, Bottom Wire |
|
$ 248.98 | |||||
| 6 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) |
|
$ 7.86 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 8 | 7003P101-60 | Insulator, Cord |
|
$ 15.60 | |||||
| 9 | 4005F612-51 | Panel, Access |
|
$ 46.13 | |||||
| 10 | 3807F615-51 | Support, Oven |
|
- | |||||
| 11 | WPW10586440 | Fan, Cooling (Replaces: W10317679) |
|
$ 318.60 | |||||
| 12 | WP7430P038-60 | Probe, Meat (Replaces: 7430P038-60) |
|
$ 143.67 | |||||
| 13 | 7101P604-60 | Screw, Shoulder |
|
- | |||||
| 14 | WP7406P430-60 | Element, Broil (Replaces: 7406P430-60) |
|
Immediately | $ 157.55 | ||||
| 15 | 12001656 | Sensor, Oven (Replaces: 7430P042-60) |
|
Immediately | $ 43.94 | ||||
| 16 | 8026P096-60 | Tube, Vent Lower |
|
- | |||||
| 17 | 8026P094-60 | Tube, Vent Upper |
|
- | |||||
| 18 | 8312P191-60 | Housing, Grease Cup |
|
$ 45.19 | |||||
| 19 | 7506P406-60 | Tube, Drain |
|
$ 137.82 | |||||
| 20 | 8034P008-60 | Screen, Smoke Eliminator |
|
$ 25.43 | |||||
| 21 | 3605F344-45 | Plate, Smoke Eliminator |
|
- | |||||
| 22 | 7407P180-60 | Assembly, Light |
|
- | |||||
| 23 | 3801F911-51 | Bracket, Power Supply |
|
$ 9.09 | |||||
| 24 | 3604F416-51 | Shield, Lower |
|
$ 59.21 | |||||
| 25 | 3608F138-70 | Trim, Side (black) |
|
$ 66.28 | |||||
| 26 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 27 | WPW10310274 | Element, Bake (Replaces: W10310274) |
|
Immediately | $ 120.66 | ||||
| 28 | 3804F300-51 | Retainer, Insulation |
|
$ 66.09 | |||||
| 29 | 4005F750-51 | Cover, Door Lock |
|
- | |||||
| 30 | 74011475 | Hinge, Door (Replaces: 7106P143-60) |
|
Immediately | $ 130.52 | ||||
| 31 | 3807F732-51 | Support, Oven Rear |
|
- | |||||
| 32 | 7403P855-60 | Limit, Oven |
|
$ 61.45 | |||||
| 33 | 4005F779-80 | Cover, Vent |
|
$ 87.36 | |||||
| 34 | 3804F312-51 | Retainer, Insulation |
|
- | |||||
| 35 | 3807F754-45 | Support, Element |
|
$ 8.34 | |||||
| 36 | WP74010805 | Leg, Leveling (Replaces: 7101P660-60) |
|
$ 7.19 | |||||
| 37 | 4020W035-80 | Pedestal, Bottom |
|
$ 112.82 | |||||
| 38 | W10271711 | Pedestal, Base |
|
$ 144.40 | |||||
| 39 | 4020F032-80 | Pedestal, Rear (right) |
|
$ 33.39 | |||||
| 39 | 4020F033-80 | Pedestal, Rear (left) |
|
$ 33.86 | |||||
| 40 | WP3801F656-51 | Bracket, Anti Tip (Replaces: 3801F656-51) |
|
Immediately | $ 5.21 | ||||
| 41 | W10213813 | Kit, Unity Convection |
|
$ 242.26 | |||||
| 42 | W10312218 | Cover, Convect |
|
$ 108.65 | |||||
| 43 | 7408P086-60 | Receptacle, Meat Probe |
|
$ 33.43 | |||||
| 44 | 3804F305-51 | Retainer, Insulation |
|
- | |||||
| NI | 7002P466-60 | Insulation, Wrap |
|
- | |||||
| NI | 7002P468-60 | Insulation, Back |
|
$ 92.98 | |||||
| NI | 7002P467-60 | Insulation, Oven Bottom |
|
- |
