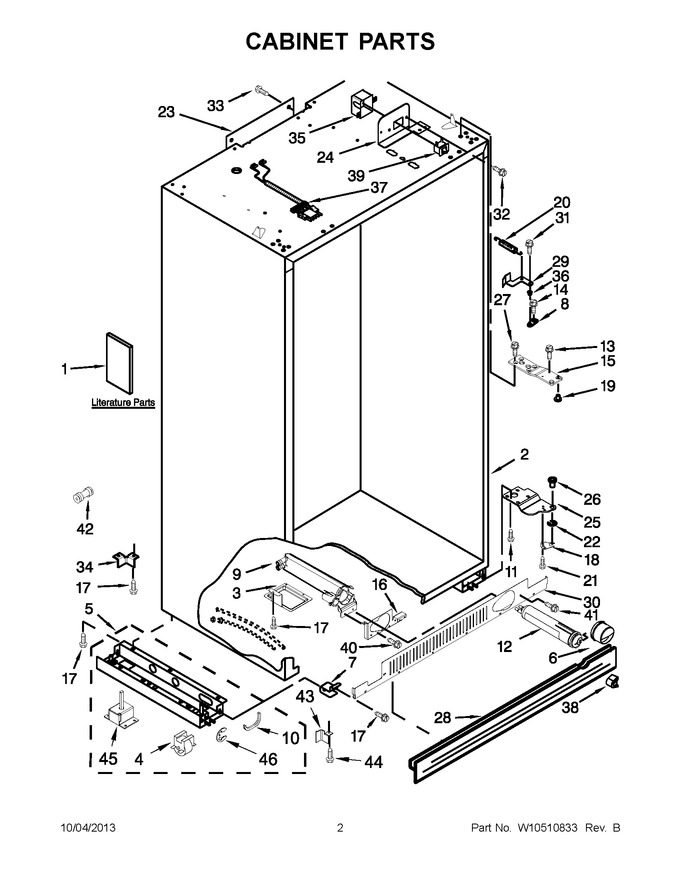

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10303988 | Use & Care Guide |
|
- | |||||
| 1 | W10477244 | Energy Guide |
|
- | |||||
| 1 | W10483315 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2306424 | Icemaker And Ingredient Care Center Service Sheet |
|
- | |||||
| 1 | W10469184 | Main Control Service Sheet |
|
- | |||||
| 1 | W10555565 | Installation Instructions |
|
- | |||||
| 2 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2318189 | Tray, Filter Drip |
|
$ 141.65 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 43.18 | |||||
| 5 | W10860448 | Assembly, Base Support (right Hand) (Replaces: W10138423) |
|
Immediately | $ 364.76 | ||||
| 5 | W10860229 | Assembly, Base Support (left Hand) (Replaces: W10279275) |
|
$ 363.65 | |||||
| 6 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 7 | W10839844 | Mounting Bracket, Grill (Replaces: 2307640) |
|
$ 41.20 | |||||
| 8 | WP2320509 | Stop, Door (Replaces: 2320509) |
|
$ 28.52 | |||||
| 9 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 10 | 2307584 | Grommet, Crossovertube |
|
$ 22.29 | |||||
| 11 | 3400525 | Screw |
|
$ 12.83 | |||||
| 12 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 13 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 10.79 | |||||
| 14 | WP8281227 | Screw (Replaces: W10189203) |
|
$ 10.44 | |||||
| 15 | 2257644 | Hinge, Top |
|
$ 169.50 | |||||
| 16 | W11755873 | Bracket, Filter (Replaces: W10348782) |
|
$ 76.50 | |||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 18 | WP2004994 | Lock, Bushing (Replaces: 2004994) |
|
Immediately | $ 7.96 | ||||
| 19 | 2300082 | Bushing |
|
$ 13.44 | |||||
| 20 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 21 | W11769878 | Screw (Replaces: 3400230) |
|
$ 12.16 | |||||
| 22 | WP489236 | Retaining Ring, Adjustable Bushing (Replaces: 2005008) |
|
Immediately | $ 12.17 | ||||
| 23 | 2215612 | Cover, Air Duct |
|
- | |||||
| 24 | W10741111 | Bracket, Switch (right Hand) (Replaces: 2221097) |
|
$ 64.16 | |||||
| 24 | 2221096 | Bracket, Switch (left Hand) |
|
$ 93.20 | |||||
| 25 | WP2006780 | Hinge, Bottom (right Hand) (Replaces: 2006780) |
|
$ 285.08 | |||||
| 25 | W10527053 | Hinge, Bottom (left Hand) (Replaces: 2006779) |
|
$ 130.70 | |||||
| 26 | WP2302876 | Bushing, Adjustable (Replaces: 2302876) |
|
Immediately | $ 86.40 | ||||
| 27 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.08 | ||||
| 28 | 2209026B | Skirt, Bottom Grille (black) |
|
$ 76.14 | |||||
| 29 | W11298172 | Extension Arm (left Hand) (Replaces: 2266881) |
|
Immediately | $ 83.27 | ||||
| 29 | W10847927 | Extension Arm (right Hand) (Replaces: 2266882) |
|
$ 95.15 | |||||
| 30 | 2325186B | Grille, Bottom (black) |
|
$ 84.63 | |||||
| 31 | W11177574 | Screw (Replaces: W10485630) |
|
$ 14.13 | |||||
| 32 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 33 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 34 | 2006617 | Bracket, Base Support |
|
- | |||||
| 35 | 2215938 | Cover, Switch |
|
$ 90.27 | |||||
| 36 | WP2316859 | Bushing, Extension Arm (Replaces: 2316859) |
|
Immediately | $ 51.62 | ||||
| 37 | W10167456 | Assembly, Rc Wire |
|
- | |||||
| 38 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 72.78 | |||||
| 39 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 39 | W11457217 | Switch, Rocker Arm, Combination(freezer) (Replaces: 1115373) |
|
$ 38.18 | |||||
| 40 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 41 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 7.83 | ||||
| 42 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 43 | 2006616 | Bracket, Support Base (front) (left Hand) |
|
$ 87.17 | |||||
| 43 | 2006556 | Bracket, Support Base (front) (right Hand) |
|
$ 35.43 | |||||
| 44 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 8.43 | |||||
| 45 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 190.54 | ||||
| 46 | 2006841 | Ring, Retainer |
|
$ 88.25 |
