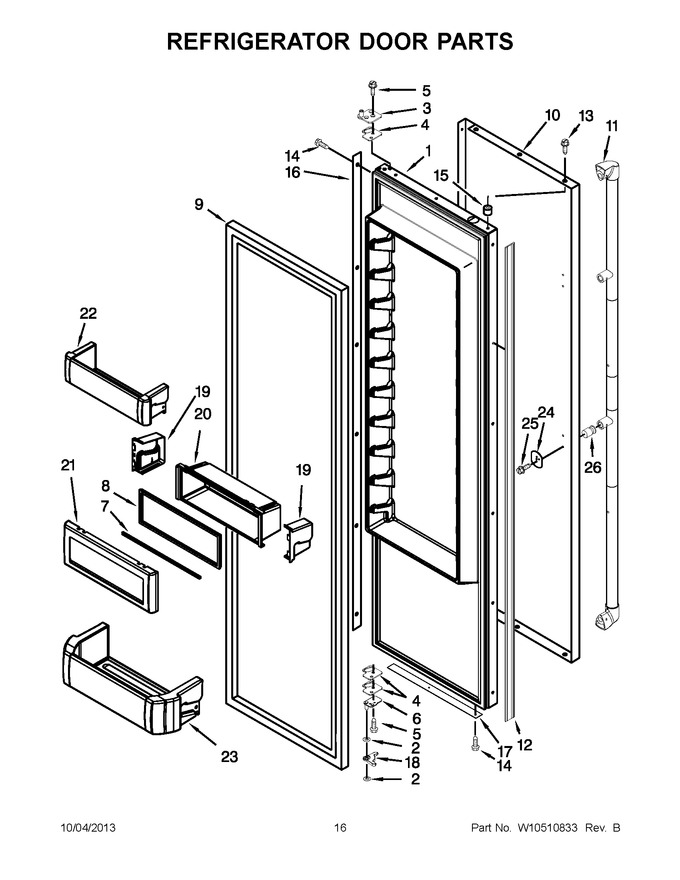

JS48PPDUDB14 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10193491	Assembly, Refrigerator Door	Appelez-nous	-
2	WP2006346	Washer, Extension Arm (Replaces: 2006346)		Immediately	$ 11.20
3	W11724512	Assembly, Top Hinge (Replaces: 2266854)			$ 297.62
4	W11673500	Spacer, Door Hinge Bottom (Replaces: 2316804)		Immediately	$ 108.07
5	W11474472	Screw (Replaces: W10162602)		Immediately	$ 8.02
6	2302878	Hinge Assembly, Bottom		Immediately	$ 86.68
7	W11348580	Rail, Lid (Replaces: 2222797)		Immediately	$ 162.13
8	W11348580	Gasket, Utility Bin (Replaces: 2222983)		Immediately	$ 162.13
9	WP2266903	Door Gasket, Magnetic (Replaces: 2222812)		Immediately	$ 323.83
10	W10144970	Skin, Door	Appelez-nous	-
11	12859108	Handle, Door			$ 284.63
12	2309060	Spacer, Handle Side Door	Appelez-nous	-
13	W10759522	Screw (stainless) (Replaces: 488568)			$ 7.75
14	WP8281250	Screw (stainless) (Replaces: 8281250)			$ 10.88
15	2005433	Spacer, Door Skin Top			$ 22.22
16	W10142296	Spacer, Door	Appelez-nous	-
17	WP2257343	Spacer, Door Skin Bottom (Replaces: 2004935)			$ 82.59
18	2006342	Cover, Bottom Gap	Appelez-nous	-
19	WPW10323172	Endcap, Utility Bin (right Hand) (Replaces: W10323172)			$ 8.19
19	WPW10323173	Endcap, Utility Bin (left Hand) (Replaces: W10323173)			$ 8.19
20	W11348580	Bin, Utility Center (Replaces: W10323037)		Immediately	$ 162.13
21	W11348580	Door, Utility Bin (Replaces: 2257617)		Immediately	$ 162.13
22	W11752086	Bin, Shallow Door (Replaces: W10323600)			$ 64.94
23	W10323748	Bin, Gallon Door			$ 115.98
24	W10127710	Plate, Handle Door		Immediately	$ 24.70
25	WP308544	Screw (Replaces: 308544)		Immediately	$ 7.76
26	WPW10153450	Stud, Handle Mounting (Replaces: W10153450)			$ 83.10
