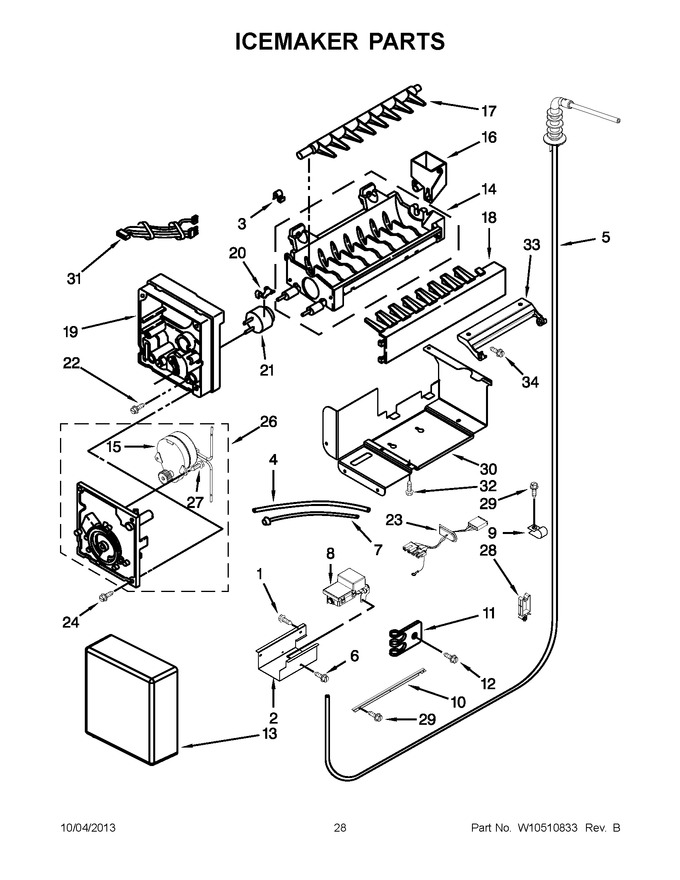

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 2 | 2320601 | Shield, Water Valve |
|
$ 114.44 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 64.66 | |||||
| 5 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 38.98 | ||||
| 6 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 7 | W11533506 | Tube, Filter Outlet (Replaces: W10437853) |
|
Immediately | $ 31.57 | ||||
| 8 | WPW10159842 | Valve, Solenoid (Replaces: W10159842) |
|
Immediately | $ 320.00 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 10 | 2320559 | Support, Valve |
|
$ 84.56 | |||||
| 11 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.18 | |||||
| 12 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 13 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 14 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 233.15 | |||||
| 15 | N/P | Motor (not Serviced, Order Item 26) |
|
- | |||||
| 16 | WPW10272168 | Cup, Water Fill (Replaces: W10272168) |
|
$ 72.84 | |||||
| 17 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 18 | WPW10272161 | Stripper, Ice (Replaces: W10272161) |
|
$ 69.35 | |||||
| 19 | WP2195914 | Housing, Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 20 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 21 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 109.18 | |||||
| 22 | W10001280 | Screw |
|
- | |||||
| 23 | W10279391 | Wire Assembly, Smart Valve |
|
$ 127.80 | |||||
| 24 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 26 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 141.64 | ||||
| 27 | 489136 | Screw |
|
$ 10.29 | |||||
| 28 | W10129069 | Clip, Tube |
|
- | |||||
| 29 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 30 | 2252228 | Bracket, Icemaker Mounting |
|
- | |||||
| 31 | 2310191 | Assembly, Icemaker Wire |
|
$ 138.83 | |||||
| 32 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 33 | WP2198641 | Bracket, Icemaker Cover (Replaces: 2198641) |
|
$ 7.19 | |||||
| 34 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 100 | WPW10277448 | Complete Icemaker Assembly (Replaces: W10277448) |
|
Immediately | $ 231.43 | ||||
| NI | W10355010 | Kitchen And Appliance Cleaner |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10355016 | Ss Cleaner |
|
- | |||||
| NI | W10355049 | Ss Cleaning Wipes |
|
$ 7.91 |
