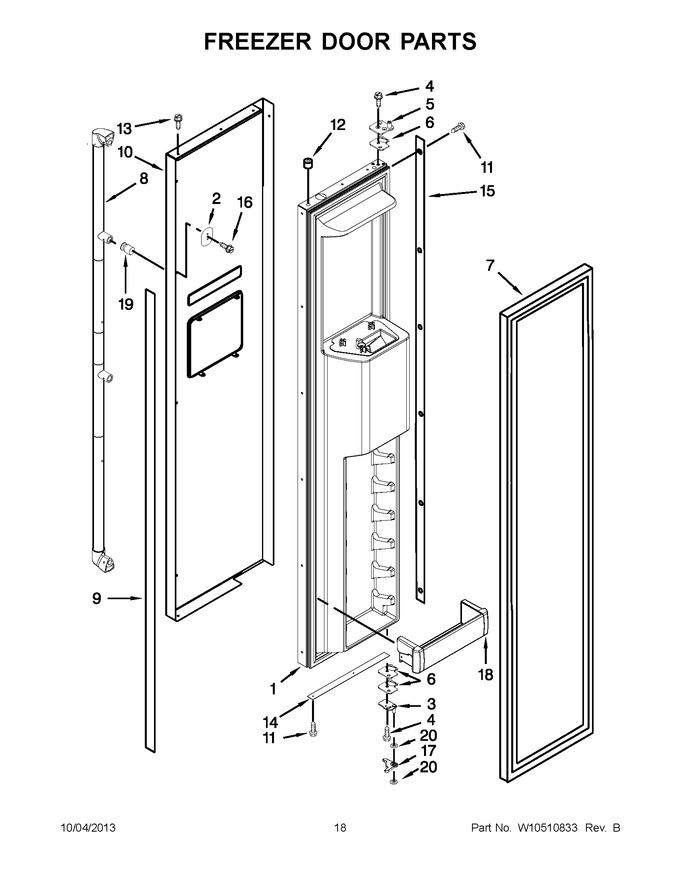

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292433		Assembly, Freezer Door		Appelez-nous	-
2	W10127710		Plate, Handle Door			Immediately	$ 24.70
3	W11752085		Assembly, Bottom Hinge   (Replaces: 2302879)				$ 60.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
5	W11724512		Assembly, Top Hinge   (Replaces: 2266854)				$ 297.62
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266901		Gasket, Door   (Replaces: 2222810)				$ 352.23
8	WP12859107		Handle, Door   (Replaces: 12859107)				$ 369.81
9	2309060		Spacer, Handle Side Door		Appelez-nous	-
10	W10144964		Skin, Door		Appelez-nous	-
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
12	2005433		Spacer, Door Skin Top				$ 22.22
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.75
14	2257386		Spacer, Door Skin Bottom		Appelez-nous	-
15	W10142296		Spacer, Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
17	2006342		Cover, Bottom Gap		Appelez-nous	-
18	W11590561		Bin, Shallow   (Replaces: W10323603)				$ 89.74
19	WPW10153450		Stud, Handle Mounting   (Replaces: W10153450)				$ 83.10
20	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.20

    View Diagram in Separate Window       Print Part List
