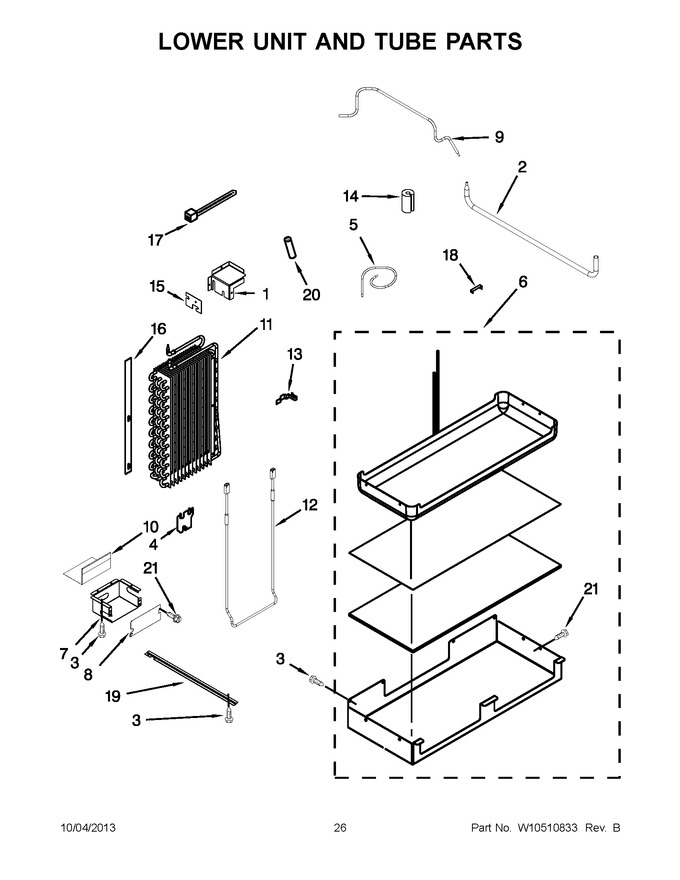

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket, Air Return Assembly		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 38.55
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	W10157752		Bracket, Heater		Appelez-nous	-
5	W10431124		Suction Tube, Oil Trap				$ 32.73
6	W11623101		Assembly, Drain Pan   (Replaces: W10281063)			Immediately	$ 375.26
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 77.64
8	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412485		Tube, Discharge				$ 129.34
10	W10321050		Shelf, Wiring Cover		Appelez-nous	-
11	WPW10427993		Evaporator   (Replaces: W10427993)			Immediately	$ 299.29
12	WPW10140162		Heater, Defrost   (Replaces: W10140162)			Immediately	$ 162.78
13	1113048		Clamp, Heater		Appelez-nous	-
14	W11715935		Grommet, Air Return   (Replaces: W10413009)				$ 12.93
15	W10139908		Cover, Evaporator Seal				$ 12.44
16	W10432308		Gasket, Evaporator		Appelez-nous	-
17	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.90
18	W10169509		Clip, Heat Exchanger		Appelez-nous	-
19	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 12.58
21	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
