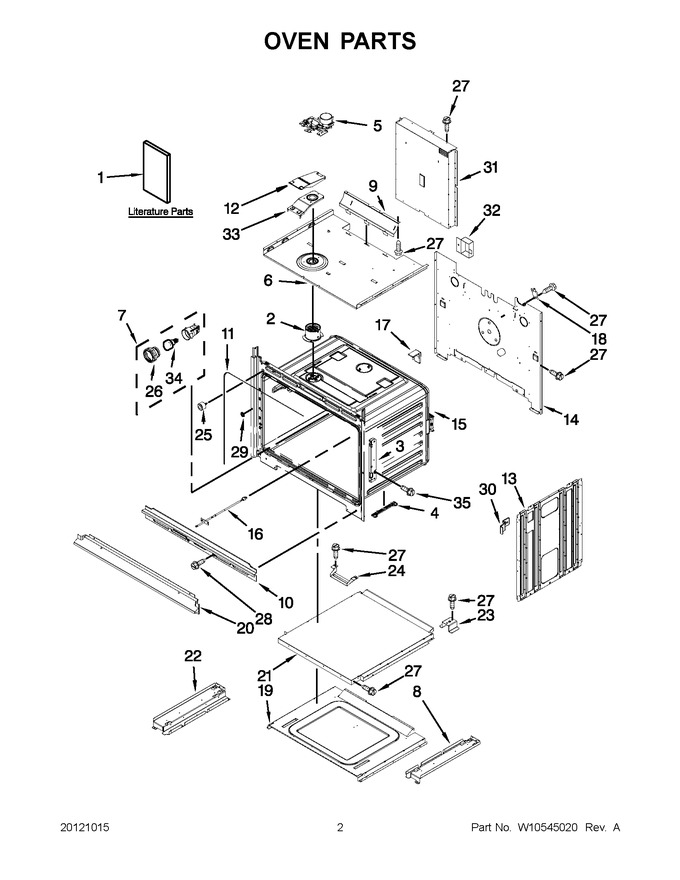

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351241 | Installation Instructions |
|
- | |||||
| 1 | W10354190 | Use & Care Guide (oven) |
|
- | |||||
| 1 | W10354191 | Use & Care Guide (microwave) |
|
- | |||||
| 1 | W10425199 | Use & Care Guide (tech Sheet) |
|
- | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 24.32 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10282975) |
|
Immediately | $ 54.75 | ||||
| 4 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 25.49 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 6 | W10282980 | Top, Chassis |
|
$ 118.05 | |||||
| 7 | WPW10734063 | Light, Indicator (Replaces: W10260262) |
|
$ 84.81 | |||||
| 8 | W10283021 | Support, Base Right Hand |
|
- | |||||
| 9 | W10351258 | Bracket, Blower Deflector |
|
- | |||||
| 10 | W10283042 | Vent, Combo Center |
|
$ 79.15 | |||||
| 11 | W11623080 | Gasket (Replaces: W10282960) |
|
Immediately | $ 72.35 | ||||
| 12 | W10616810 | Exhaust, Vent Cover (Replaces: W10282985) |
|
$ 66.62 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10282990 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 132.94 | ||||
| 17 | WPW10392683 | Bumper, Rail (Replaces: W10392683) |
|
$ 9.64 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10282900) |
|
$ 333.00 | |||||
| 20 | WPW10327373 | Assembly, Bottom Vent (black) (Replaces: W10327373) |
|
$ 308.58 | |||||
| 20 | WPW10351279 | Assembly, Bottom Vent (stainless) (Replaces: W10351279) |
|
Immediately | $ 266.95 | ||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 209.57 | |||||
| 22 | W10283020 | Support, Base Left Hand |
|
- | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Chassis, Bottom Duct Spacer |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 10.49 | |||||
| 26 | WPW10412722 | Lens, Light (Replaces: W10412722) |
|
Immediately | $ 18.71 | ||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 28 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 7.60 | |||||
| 29 | W10759525 | Grommet, Front Frame (Replaces: W10283016) |
|
$ 7.82 | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 14.30 | |||||
| 31 | W10283030 | Chassis, Back Duct |
|
- | |||||
| 32 | W11819303 | Connector Cover (Replaces: 8285593) |
|
- | |||||
| 33 | W10616809 | Base, Exhaust Vent (Replaces: W10282984) |
|
$ 30.70 | |||||
| 34 | WPW10412711 | Bulb, Light (Replaces: W10412711) |
|
Immediately | $ 22.61 | ||||
| 35 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.11 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10520715) |
|
$ 118.92 | |||||
| NI | W11684789 | Insulation, Cavity (Replaces: W10282944) |
|
$ 118.13 |
