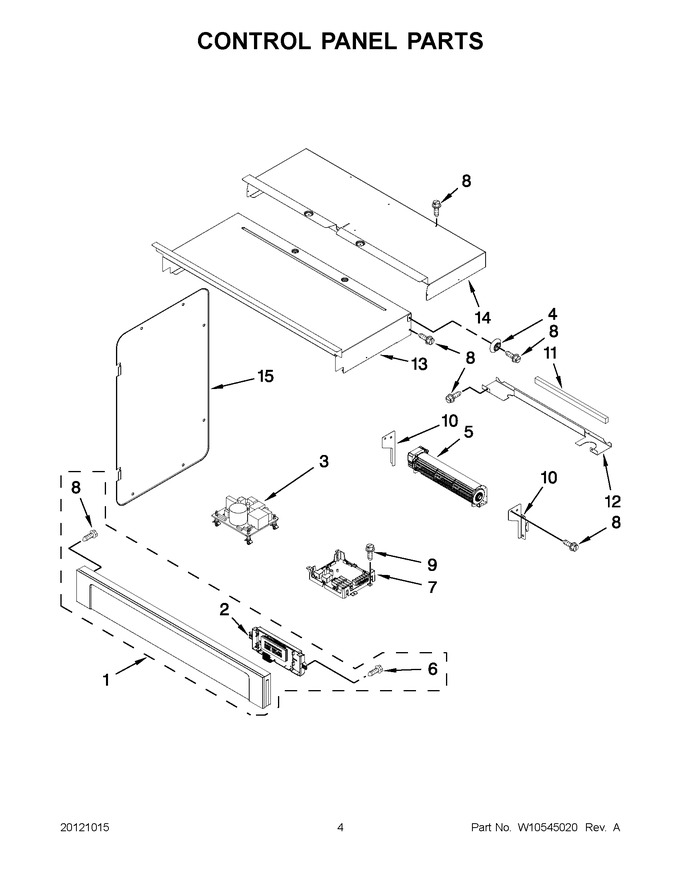

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10540090		Assembly, Control Panel (includes Overlay) (black)		Appelez-nous	-
1	W10540091		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
1	W10540089		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	W10496841		Board, Navigator		Appelez-nous	-
3	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 302.24
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 7.94
7	WPW10496830		Manager, Appliance   (Replaces: W10496830)				$ 411.67
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	W10351257		Bracket, Blower Left		Appelez-nous	-
10	W10283078		Bracket, Blower Right		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10509164		Chassis, Divider Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30``		Appelez-nous	-
14	W10283031		Chassis, Cover Top Back 30``		Appelez-nous	-
15	W10283033		Chassis, Side		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
