Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10260252 Element, Broil   (Replaces: W10260252) Special Order $ 132.83

2 W10282967 Rack, Oven Special Order $ 139.81

3 W10318198 Tray, Hidden Bake Special Order $ 195.83

4 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 14.23

5 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

6 W10282957 Tray, Hidden Bake Crossbar Special Order $ 47.47

7 W11545804 Element, Bake   (Replaces: W10282948) In-Stock Immediately $ 102.53

8 W10794022 Motor, Convection Fan   (Replaces: W10116228) In-Stock Immediately $ 214.63

9 WPW10116349 Nut, Acorn   (Replaces: W10116349) Special Order $ 21.78

10 W10758272 Blade, Fan   (Replaces: W10116351) In-Stock Immediately $ 7.91

11 WPW10260248 Ring, Element   (Replaces: W10260248) Special Order $ 309.67

12 W10359278 Baffle, Convection Special Order $ 249.22

13 W11718046 Rack, Sliding   (Replaces: W10282973) In-Stock Immediately $ 173.45


    View Diagram in Separate Window     Print Icon   Print Part List

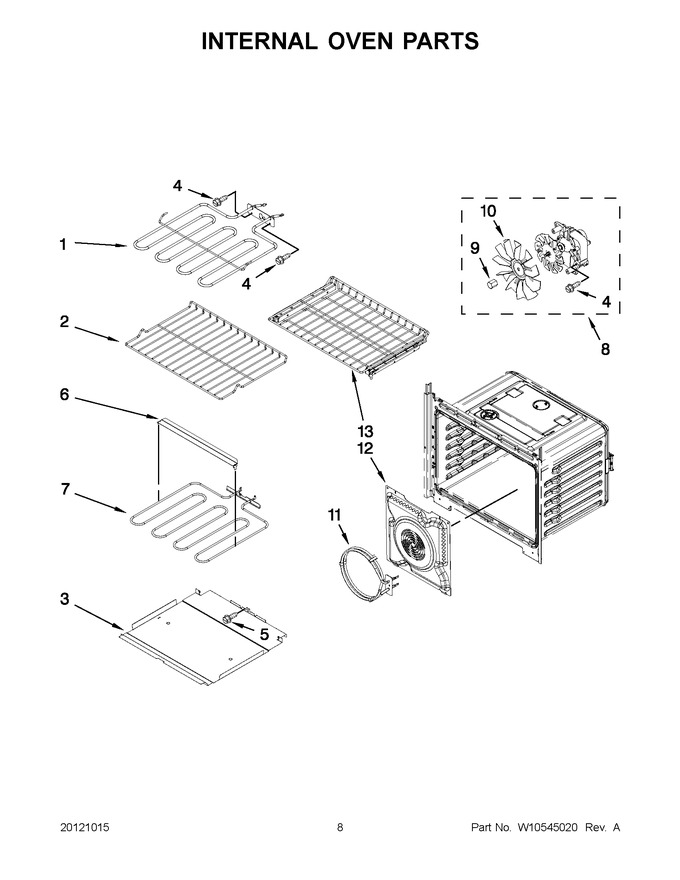

Diagram for MMW9730AW01
