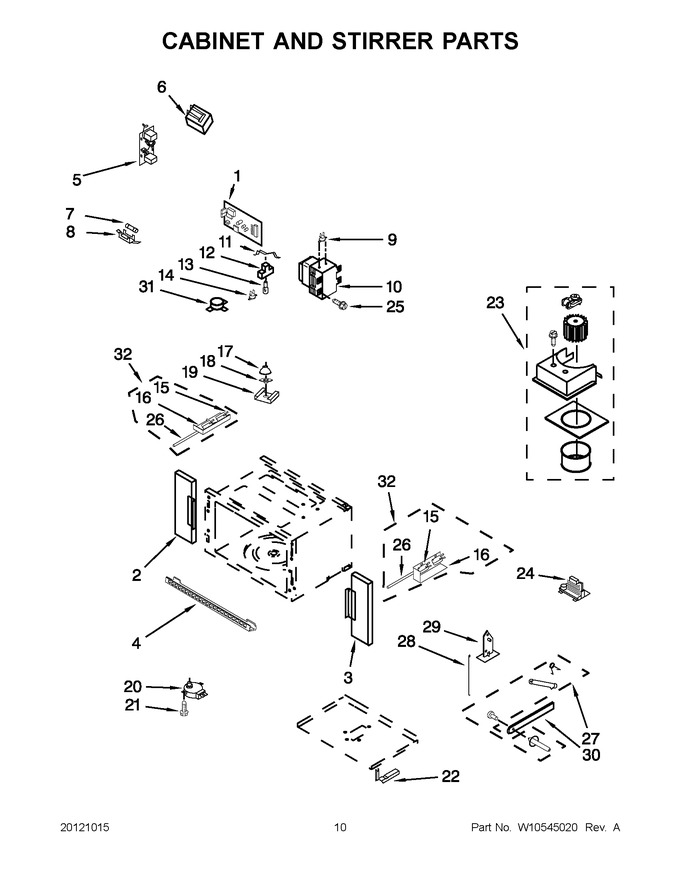

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486188 | Control, Electric (Replaces: W10486188) |
|
$ 261.56 | |||||
| 2 | W10486208 | Trim, Side Left |
|
$ 75.37 | |||||
| 3 | W10486209 | Trim, Side Right |
|
$ 50.14 | |||||
| 4 | W10486211 | Vent, Top Microwave |
|
$ 53.81 | |||||
| 5 | W10853613 | Noise Filter (Replaces: W10486187) |
|
$ 205.48 | |||||
| 6 | W11238401 | Transformer (Replaces: 8205692) |
|
Immediately | $ 343.70 | ||||
| 7 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 18.28 | ||||
| 8 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 83.15 | |||||
| 9 | W11233913 | Thermostat (Replaces: W10287986) |
|
Immediately | $ 148.65 | ||||
| 10 | W11346197 | Magnetron (Replaces: W10120113) |
|
Immediately | $ 271.25 | ||||
| 11 | W10475855 | Spring, Lamp |
|
- | |||||
| 12 | WPW10490593 | Housing, Lamp (Replaces: 8205658) |
|
$ 74.11 | |||||
| 13 | W10886919 | Lamp, Halogen (Replaces: W10287972) |
|
Immediately | $ 32.22 | ||||
| 14 | W11568584 | Thermostat (Replaces: W10389447) |
|
$ 42.44 | |||||
| 15 | W10211972 | Switch (Replaces: W10330566) |
|
Immediately | $ 52.40 | ||||
| 16 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 99.41 | ||||
| 17 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 81.81 | |||||
| 18 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 99.83 | ||||
| 19 | W11440819 | Clip. Spring (Replaces: W10120231) |
|
$ 21.90 | |||||
| 20 | W10911403 | Motor, Turntable (Replaces: W10287967) |
|
Immediately | $ 117.53 | ||||
| 21 | 461967825321 | Screw (Replaces: 4375202) |
|
$ 11.55 | |||||
| 22 | W10874474 | Hinge, Door (Replaces: W10120478) |
|
Immediately | $ 60.11 | ||||
| 23 | W11344874 | Blower Assembly (Replaces: W10330572) |
|
Immediately | $ 182.61 | ||||
| 24 | W10217711 | Inverter (Replaces: W10120229) |
|
Immediately | $ 289.63 | ||||
| 25 | 461967825971 | Screw (Replaces: W10130890) |
|
- | |||||
| 26 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 6.97 | ||||
| 27 | WPW10128850 | Sliding Arm Assembly (Replaces: W10128850) |
|
Immediately | $ 135.31 | ||||
| 28 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 68.86 | |||||
| 29 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 14.78 | ||||
| 30 | W11214480 | Sliding Arm (Replaces: W10120236) |
|
$ 95.75 | |||||
| 31 | W11699906 | Sensor, Humidity (Replaces: W10475857) |
|
$ 131.96 | |||||
| 32 | W11033422 | Harness (Replaces: W10358241) |
|
Immediately | $ 159.55 |
