SELECT A DIAGRAM
New Model Search:

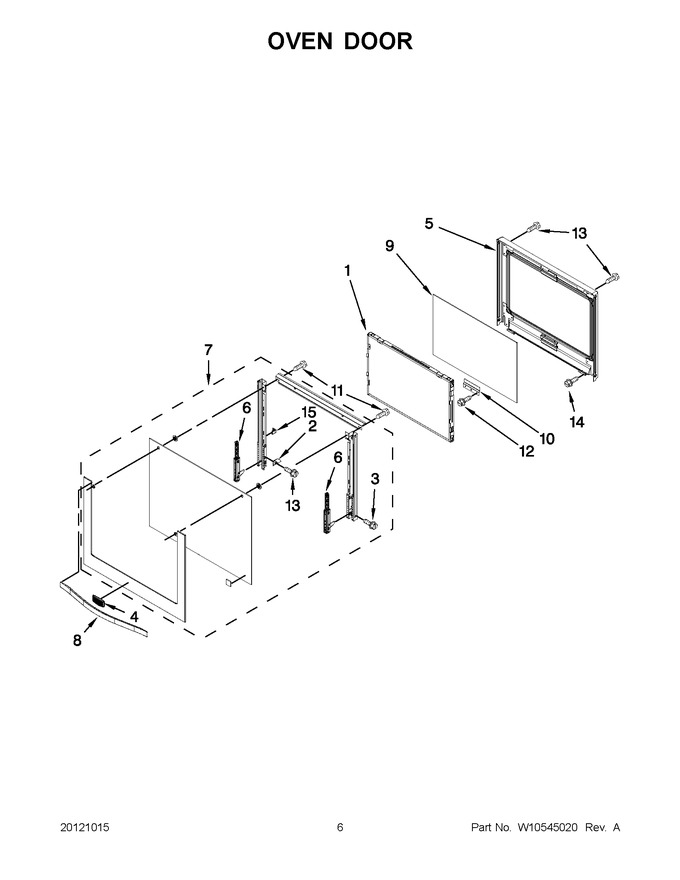

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347596 | Assembly, Window Pack (Replaces: W10347596) |
|
Immediately | $ 307.67 | ||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 157.87 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.75 | ||||
| 4 | W10288004 | Badge (black) |
|
$ 49.63 | |||||
| 5 | WPW10709147 | Assembly, Liner Welded 30`` (Replaces: W10320791) |
|
$ 349.23 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10419876) |
|
Immediately | $ 104.32 | ||||
| 7 | W10354533 | Assembly, Door Glass (black) |
|
- | |||||
| 7 | W10354532 | Assembly, Door Glass (stainless) |
|
- | |||||
| 7 | W10354534 | Assembly, Door Glass (white) |
|
- | |||||
| 8 | WPW10161708 | Handle, Door (stainless) (Replaces: W10284921) |
|
$ 355.25 | |||||
| 8 | W10284923 | Handle, Door (white) |
|
- | |||||
| 8 | W10284922 | Handle, Door (black) |
|
- | |||||
| 9 | WPW10618107 | Liner, Inner Glass (Replaces: W10284901) |
|
$ 235.91 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 156.06 | |||||
| 11 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.95 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 13 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 7.19 | ||||
| 14 | W10828565 | Screw (Replaces: 7101P635-60) |
|
$ 7.44 | |||||
| 15 | WPW10392683 | Bumper, Rail (Replaces: W10392683) |
|
$ 9.64 |
