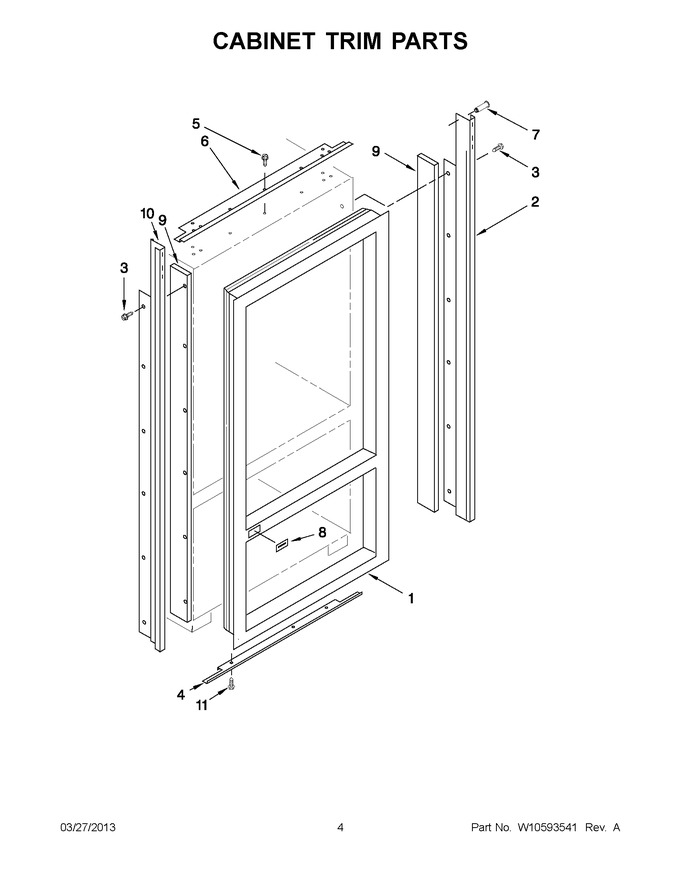

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Breaker, Trim (not Serviced)		Appelez-nous	-
2	W10132411		Trim Side (aluminum)		Appelez-nous	-
3	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
4	2316686		Cabinet Trim, Bottom		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 14.72
6	2313964S		Cabinet Trim, Top		Appelez-nous	-
7	WPW10121451		Insert, Blind Threaded   (Replaces: W10121451)			Immediately	$ 8.03
8	2005782		Cover, Door Hinge (white)				$ 12.04
9	2005925		Trim, Side Seal				$ 83.72
10	W10132416		Trim, Side Cabinet		Appelez-nous	-
11	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
