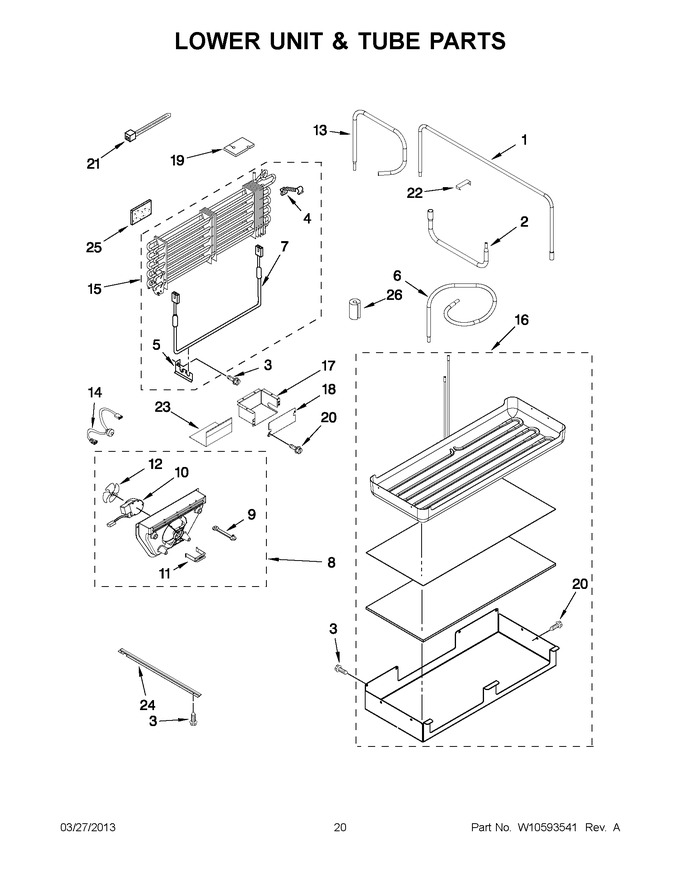

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309072 | Tube, Transition |
|
- | |||||
| 2 | W10388653 | Tube, Connect (drier/restrictor) |
|
Immediately | $ 40.48 | ||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 4 | 2307944 | Clip, Evaporator Heater |
|
- | |||||
| 5 | 2307945 | Bracket, Mounting |
|
- | |||||
| 6 | W10306442 | Tube, Oil Trap Suction |
|
- | |||||
| 7 | WP2268393 | Heater, Defrost (Replaces: 2268393) |
|
$ 168.19 | |||||
| 8 | W10321092 | Scroll Assembly |
|
$ 239.26 | |||||
| 9 | W11671528 | Grommet, Motor (Replaces: W10321090) |
|
- | |||||
| 10 | W11671461 | Motor, Fan (Replaces: W10436861) |
|
Immediately | $ 206.52 | ||||
| 11 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 24.00 | |||||
| 12 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 13 | W10404239 | Tube, Discharge Assembly |
|
- | |||||
| 14 | W10482185 | Harness, Bi-metal |
|
$ 253.84 | |||||
| 15 | WPW10195923 | Evaporator Assembly (Replaces: W10195923) |
|
Immediately | $ 390.15 | ||||
| 16 | W11623101 | Drain Pan Assembly (Replaces: W10281063) |
|
Immediately | $ 394.02 | ||||
| 17 | W10316077 | Cover, Bottom Wiring |
|
- | |||||
| 18 | W11756952 | Cover, Wire Box (Replaces: W10321048) |
|
- | |||||
| 19 | 2306180 | Block, Evaporator Water Filter |
|
- | |||||
| 20 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 21 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 22 | W10169509 | Clip, Heat Exchanger |
|
- | |||||
| 23 | W10321050 | Shelf, Wiring Cover |
|
- | |||||
| 24 | 2320554 | Support, Drain Pan |
|
- | |||||
| 25 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 26 | W11715935 | Grommet Air Return (Replaces: W10413009) |
|
$ 13.58 |
