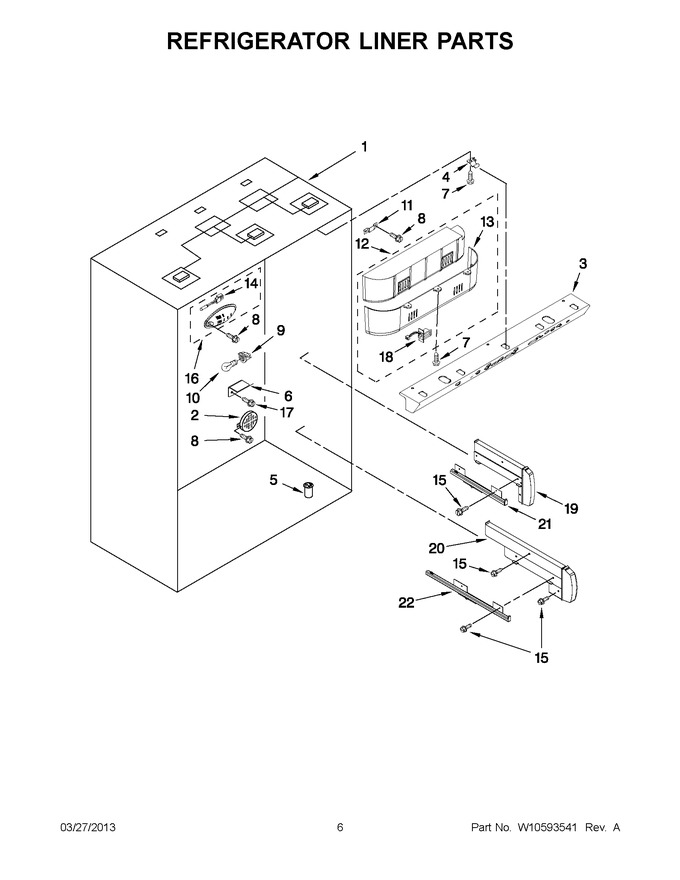

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner, Refrigerator (not Serviced) |
|
- | |||||
| 2 | 2317004 | Cover, Air Return |
|
- | |||||
| 3 | W10468945 | Control Box |
|
Immediately | $ 1,364.94 | ||||
| 4 | 2317000 | Clip, Control Box |
|
- | |||||
| 5 | WP2210509 | Valve Tube, Body (Replaces: 2171931) |
|
$ 99.15 | |||||
| 6 | 2302788 | Support, Crisper Cover |
|
- | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 9 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 10 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 11 | 2317917 | Clip, Diffuser Cover |
|
- | |||||
| 12 | 2320523 | Diffuser Assembly |
|
$ 100.60 | |||||
| 13 | 2320519 | Cover, Diffuser |
|
$ 117.62 | |||||
| 14 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 15 | W11830745 | Screw (stainless) (Replaces: 8533929) |
|
- | |||||
| 16 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 11.38 | |||||
| 17 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 18 | WP2221296 | Air Baffle Assembly (Replaces: 2221296) |
|
Immediately | $ 412.58 | ||||
| 19 | 2309410 | Spacer, Crisper (right Hand) |
|
- | |||||
| 19 | 2309411 | Spacer, Crisper (left Hand) |
|
- | |||||
| 20 | 2268411 | Spacer, Deli (left Hand) |
|
- | |||||
| 20 | 2268412 | Spacer, Deli (right Hand) |
|
- | |||||
| 21 | 2302952 | Slide, Crisper Pan (left Hand) |
|
Immediately | $ 318.09 | ||||
| 21 | 2302953 | Slide, Crisper Pan (right Hand) |
|
Immediately | $ 318.41 | ||||
| 22 | 2302957 | Slide, Deli Pan (right Hand) |
|
$ 228.33 | |||||
| 22 | 2302956 | Slide, Deli Pan (left Hand) |
|
$ 298.73 |
