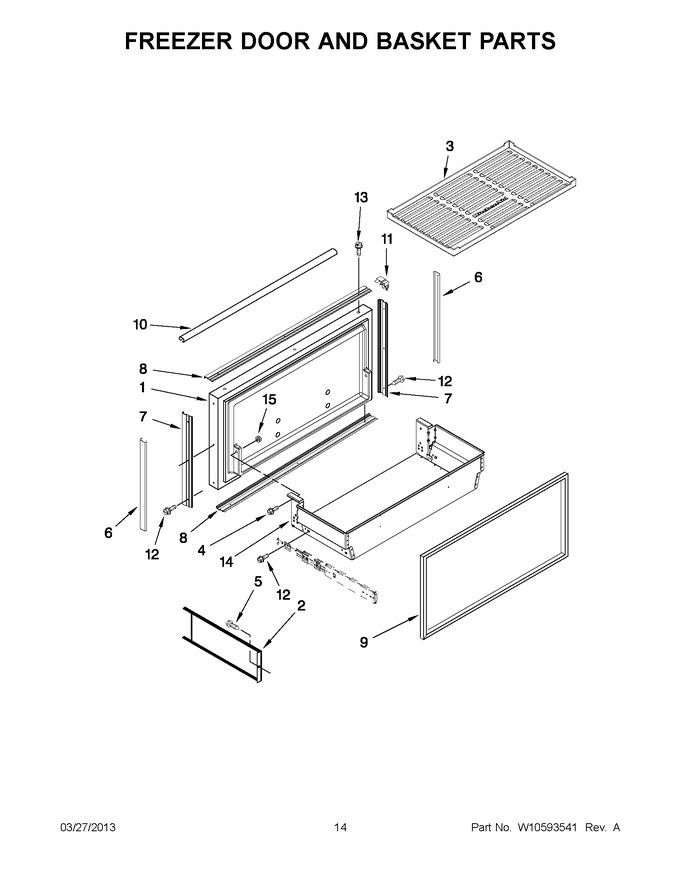

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10258746 | Freezer Door Panel |
|
- | |||||
| 2 | 2317101 | Divider, Basket |
|
- | |||||
| 3 | 2314025 | Mat, Basket |
|
- | |||||
| 4 | W10135775 | Screw |
|
$ 14.93 | |||||
| 5 | WP488234 | Screw (Replaces: W10135792) |
|
$ 7.08 | |||||
| 6 | 2006324 | Cover, Bottom Trim (side) |
|
$ 30.22 | |||||
| 7 | 2309477 | Trim, Door (side) |
|
$ 220.55 | |||||
| 8 | 2309478 | Trim, Door (top) |
|
$ 187.20 | |||||
| 9 | W11624996 | Door Gasket, Magnetic (Replaces: W10144009) |
|
Immediately | $ 243.72 | ||||
| 10 | 2006329 | Cover-trim, Handle |
|
$ 95.97 | |||||
| 11 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 12 | W10109030 | Screw |
|
$ 15.35 | |||||
| 13 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 14 | W10258182 | Basket Assembly, Freezer |
|
$ 254.40 | |||||
| 15 | WP2207454 | Nut, Hex (Replaces: 2207454) |
|
$ 11.38 |
