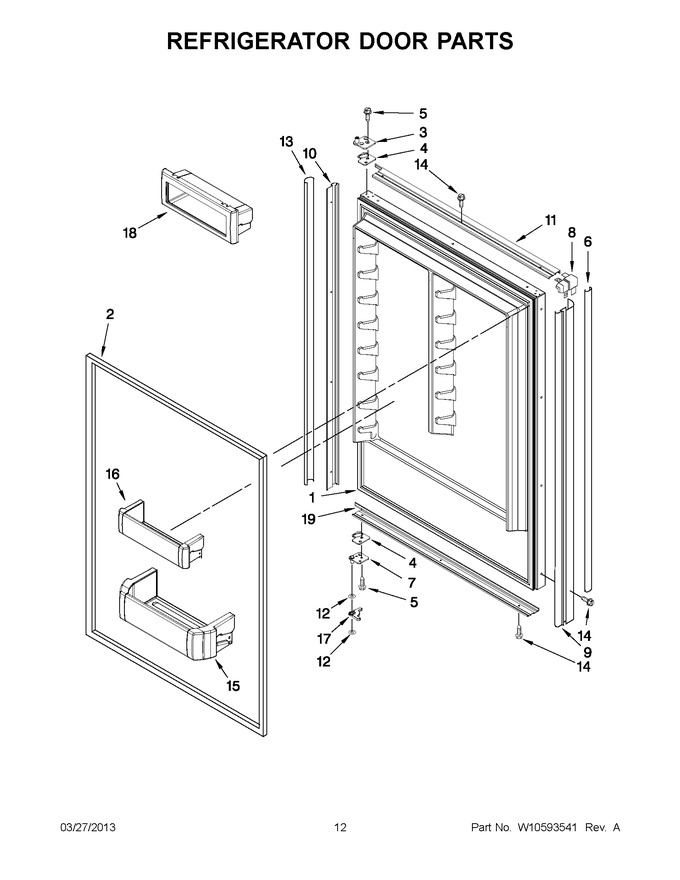

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192039		Door, Refrigerator		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 328.30
3	W10484480		Hinge Assembly, Top				$ 64.04
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2266942S		Cover, Hinge Trim				$ 97.89
7	2256281		Bottom Hinge Assembly				$ 86.00
8	2207457		Trim, Corner				$ 57.12
9	2309476		Trim, Door (hinge Side)		Appelez-nous	-
10	2309475		Trim, Door (handle Side)				$ 305.29
11	2309473		Trim, Door (top)				$ 288.89
12	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
13	2209084S		Cover-trim Handle Side (rc)				$ 136.73
14	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
15	W10323749		Bin, Gallon				$ 136.84
16	W11590561		Bin, Shallow   (Replaces: W10323603)				$ 94.23
17	W10188434		Cover, Bottom Gap				$ 67.95
18	W10323044		Assembly, Utility Bin				$ 132.58
19	2309474		Trim, Door (bottom)				$ 260.24
