SELECT A DIAGRAM

01 - Cover Sheet

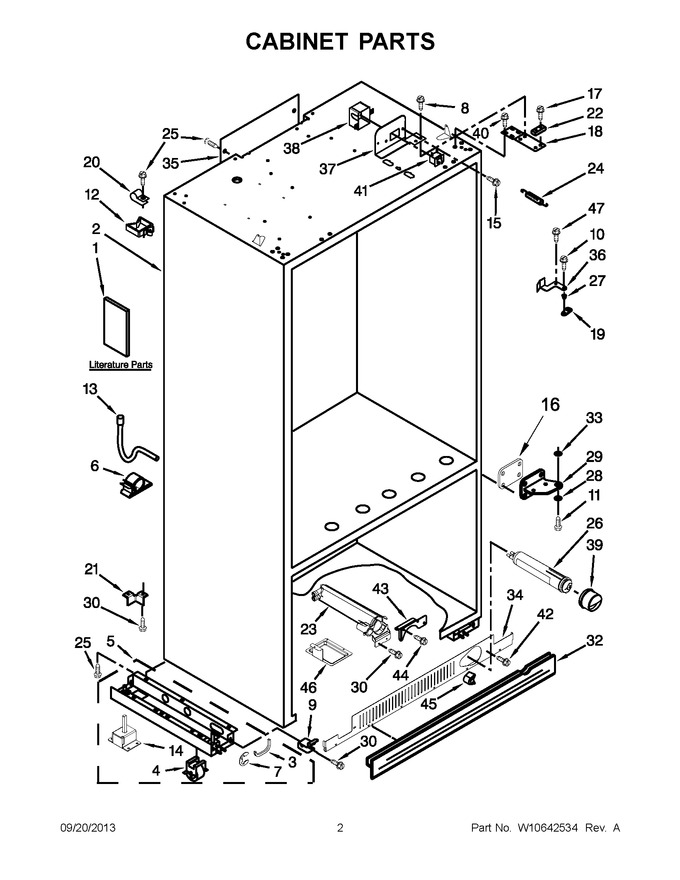

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Top Grille And Unit Cover Parts


05 - Refrigerator Liner Parts


06 - Freezer Liner Parts


07 - Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door And Basket Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10183787		Use And Care Guide		Appelez-nous	-
1	W10477526		Energy Guide		Appelez-nous	-
1	W10512205		Service And Wiring Sheet		Appelez-nous	-
1	W10469187		Main Control Service Sheet		Appelez-nous	-
1	2317840		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10555566		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2307584		Grommet, Crossover Tube				$ 23.40
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860448		Support, Leveler Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (left Hand)   (Replaces: W10279275)				$ 381.83
6	2004514		Clip		Appelez-nous	-
7	2006841		Ring, Retainer				$ 92.66
8	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
9	W10839844		Mounting Bracket, Grill   (Replaces: 2307640)				$ 43.26
10	W11177574		Screw   (Replaces: W10485630)				$ 14.84
11	WP488234		Screw   (Replaces: 488234)				$ 7.08
12	W10129069		Clip, Tube		Appelez-nous	-
13	2314064		Tube, Drain				$ 93.88
14	2005032		Leveler, Adjustable			Immediately	$ 200.07
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
16	2207470		Shim, Door Hinge			Immediately	$ 52.27
17	W11227370		Screw   (Replaces: W10005070)			Immediately	$ 14.91
18	W11218690		Hinge, Door Refrigerator Top   (Replaces: 2316759)			Immediately	$ 78.29
19	WP2320509		Stop, Door   (Replaces: 2320509)				$ 29.95
20	489348		Clamp, Tube		Appelez-nous	-
21	2006617		Bracket, Base Support		Appelez-nous	-
22	W11403572		Stop, Door   (Replaces: 2316758)			Immediately	$ 70.48
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
24	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 54.20
28	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
29	W10337505		Hinge, Center Refrigerator Door			Immediately	$ 141.32
30	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
32	2209025B		Skirt-grille, Bottom (black)				$ 48.90
33	2314023		Bushing, Hinge				$ 48.67
34	2325188B		Grille Base, Front				$ 70.00
35	W10426957		Cover-assembly, Air Duct		Appelez-nous	-
36	W11298172		Arm, Extension (left Hand)   (Replaces: 2266881)			Immediately	$ 87.43
36	W10847927		Arm, Extension (right Hand)   (Replaces: 2266882)				$ 99.91
37	2221096		Bracket, Switch (left Hand)				$ 97.86
37	W10741111		Bracket, Switch (right Hand)   (Replaces: 2221097)				$ 67.37
38	2215938		Cover, Switch				$ 94.78
39	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
40	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
41	W11384469		Switch, Rocker Arm (refrigerator)   (Replaces: 1118894)			Immediately	$ 39.09
42	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
43	W11755873		Bracket, Filter   (Replaces: W10348782)				$ 80.33
44	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
45	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
46	2318189		Tray, Filter Drip				$ 148.73
47	WP8533980		Screw   (Replaces: 8533980)			Immediately	$ 86.64
