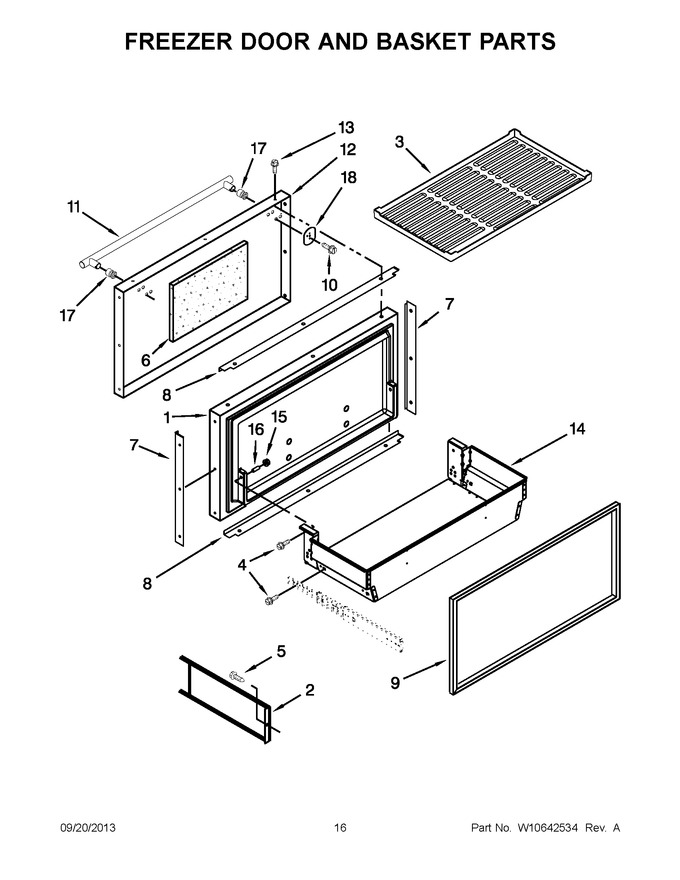

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258747		Freezer Door		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: W10183770)				$ 283.65
4	W10135775		Screw				$ 14.93
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	2309219		Filler, Foam				$ 277.62
7	W10340330		Spacer, Door Edge (side)		Appelez-nous	-
8	2309221		Spacer, Door Edge (top And Bottom)		Appelez-nous	-
9	WPW10192907		Door Gasket, Magnetic   (Replaces: W10192907)			Immediately	$ 363.09
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
11	WPW10298179		Handle, Door (stainless)   (Replaces: W10298179)				$ 319.69
12	W10523750		Door Skin (stainless)		Appelez-nous	-
13	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
14	W10258183		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	WPW10168981		Mount, Handle   (Replaces: W10168981)				$ 17.69
18	W10127710		Plate, Handle Door			Immediately	$ 25.94

    View Diagram in Separate Window       Print Part List
