Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10321125 Top Grille Assembly Special Order $ 274.03

2 W10624563 Cover, Unit Appelez-nous -
3 2256466 Panel, Unit Back Special Order $ 327.22

4 W10185625 Unit Cover, Front Special Order $ 262.53

5 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

6 2187946 Wire Assembly, Light Switch Special Order $ 97.71

7 WPW10214168 Nameplate (stainless)   (Replaces: W10214168) Special Order $ 85.95

8 489348 Clamp, Tube Appelez-nous -
9 WP489399 Screw   (Replaces: 489399) Special Order $ 7.30

10 2215910 Grommet, Flexible Special Order $ 94.32


    View Diagram in Separate Window     Print Icon   Print Part List

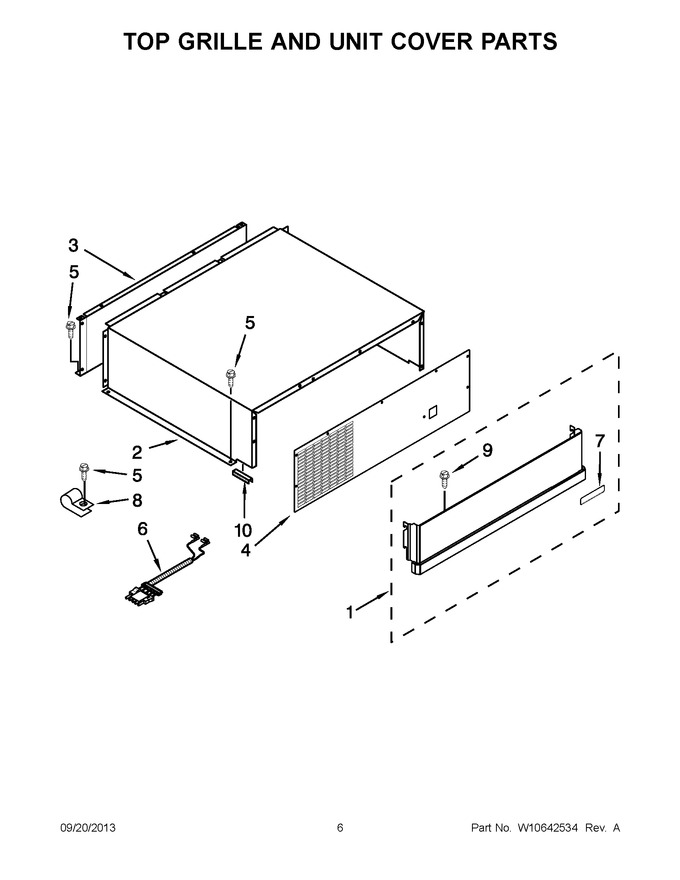

Diagram for JF42SSFXDA02
